| General | |
|---|---|

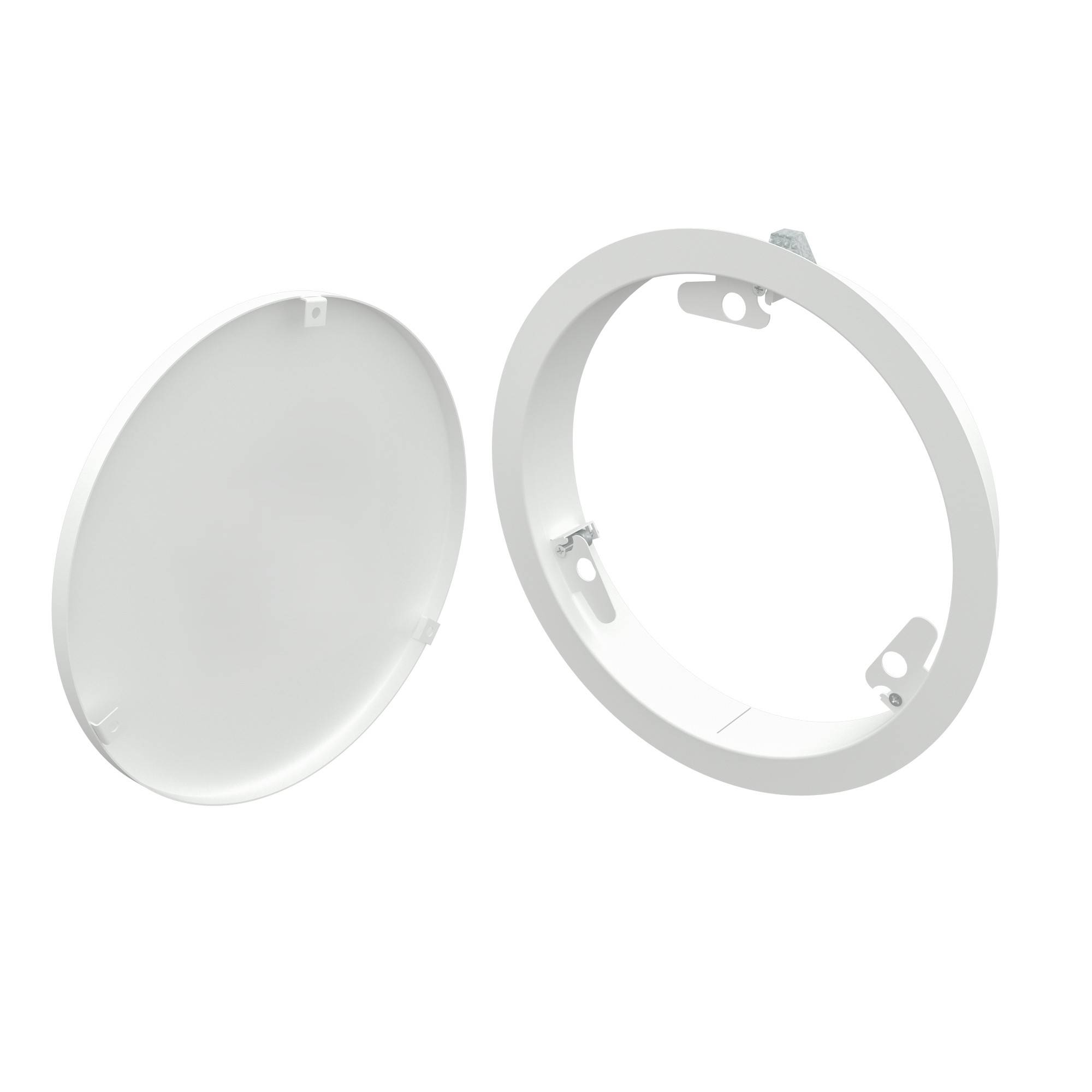

| Long Description | Metal Faced Ceiling Access Panel, Supplied with the Patented FlipFix Fitting Device, Non fire rated, Metal Door, 25mm wide Picture Frame, No Lock, Single Door Unit, Lift Out Door, Circular Door, Fitted with Safety Wires, Powder Coated RAL 9010 30% Gloss. Get your panel installed in as little as 5 minutes. Just flip and fix. Say goodbye to wood, screws and glue! |
| Dimensions | |
|---|---|
| Height Range | 200 - 600 mm |
| Width Range | 200 - 600 mm |
| Technical Data | |
|---|---|
| Wall or Ceiling or Both (Dual) | Ceiling |
| Fire Rating | No Rating |
| Assessed Maximum Panel Sizes | No increase permitted |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. | 200mm up to 600mm Diameter |
| Smoke Tested | No Rating |
| Airtightness Tested | No Rating |
| Acoustic Tested | No Rating |
| Corrosion class C1, C2, C3, C4 | C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Important Safety Notice | FlipFix access panels are for inspection purposes only. They should not be climbed through & used to support body weight. |
| Wall Types | Not Suitable for a Wall Application |
| Ceiling Types | Plasterboard clad ceilings,Most ceiling types as long as there are sufficiently robust locations to fix the frame to take the weight of the Door & Frame |

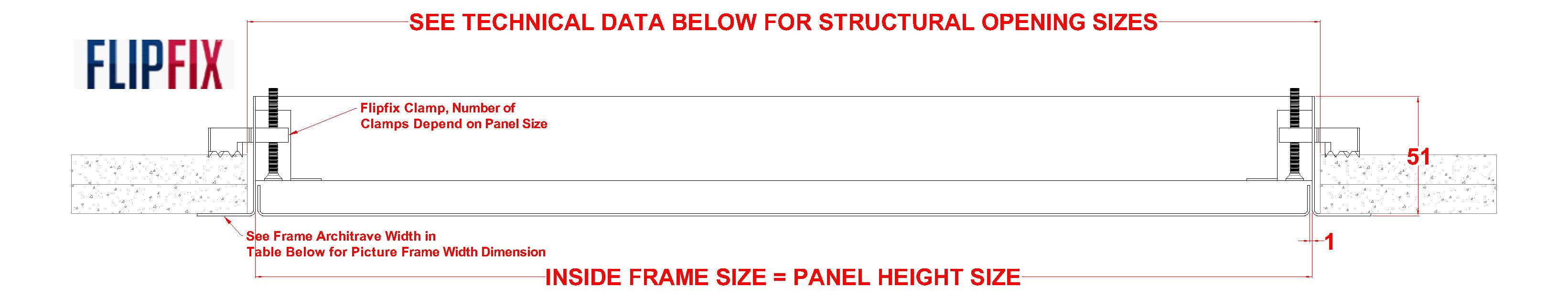

| Structural Opening Size | Panel Diameter Size + 7mm |
| Panel Size Formula H x Wmm | Inside Frame Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees | Panel Diameter Size -60mm |
| Composition / Manufacturing | |
|---|---|
| Quality Category | Mid Range |
| Product Design Category | Standard Product |
| Ironmongery Details | Safety Wire Cable assembly 2mm Ø with loops both ends at 200mm centres eye to eye. 4mm Ø Bright Zinc Plated (BZP) Steel Carbine Snap Hook,[Steel FlipFix fixing device, manufactured from Hot Galvanised Dipped Forged Steel] |
| Lock Security Level | Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) | 25mm |
| Frame Steel Thickness | 0.9mm |
| Door Steel Thickness | 0.9mm |
| Door & Frame Material Grade | Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth | 52mm |
| Board Infill Type | None |
| Door Insulation Type | None |
| Seal Type | None |
| Paint Type | Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
