| Technical Data |
| Wall or Ceiling or Both (Dual) |
Wall |
| Fire Rating |
2 Hour Fire Rated |
| Fire Test Standard |
BS EN 1634-1: 2014+A1:2018 |
| Fire Test Classification |
Integrity (E) |
| Fire Tested Side |
Wall application Both Sides (Bidirectional / opening in either direction with respect to the fire risk side) |
| Fire Tested Size H x W mm |
2400x900mm |
| Assessed Maximum Panel Sizes |
Up to 15% increase in height, 15% width and up to 20% area. |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. |
300x300mm up to 2400x900mm |
| Smoke Test Standard |
BS EN 1634-3: 2004 |
| Airtightness Tested |
No Rating |
| Acoustic Tested |
No Rating |
| Corrosion class C1, C2, C3, C4 |
C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Wall Types |
[Other rated wall constructions, not listed below, may also be acceptable, subject to expert advice from a qualified fire consultant],Plasterboard clad timber stud partitions (exposed studs are not covered),Plasterboard clad steel stud partitions (exposed studs are not covered),[For flexible wall types: The aperture must be lined with either 1No, 2No or 3No. layer(s) of 12.5mm or 15mm thick Type F plasterboard (EN520).],Masonry constructions (wall thickness and overall density must be equal to or greater than 140mm thick and 850 kg/m3).,Concrete walls (excluding no fines concrete) (wall thickness and overall density must be equal to or greater than 140mm thick and 850 kg/m3).,For rigid wall types: : It is optionally permitted for the structural opening to be lined with up to 3No. layer(s) of 12.5mm or 15mm thick Type F ,Facing boards to the walls must be mechanically fixed with steel fixings at a minimum of 300mm centres,[Knauf Shaftwall: J-channel, deep flange U-channel, CT stud, 100mm Rocksilk RS60, 3×15mm Fire Panel, 1×19mm Coreboard],Knauf Shaftwall: The aperture must be lined out with 3no layers of 15mm thick Knauf Fire Panel plasterboard.,Rigid Plinth: 75–250mm high above finished floor level. Located at the base of the structural opening; other sides use flexible wall construction |
| Ceiling Types |
Not Suitable for a Ceiling Application |

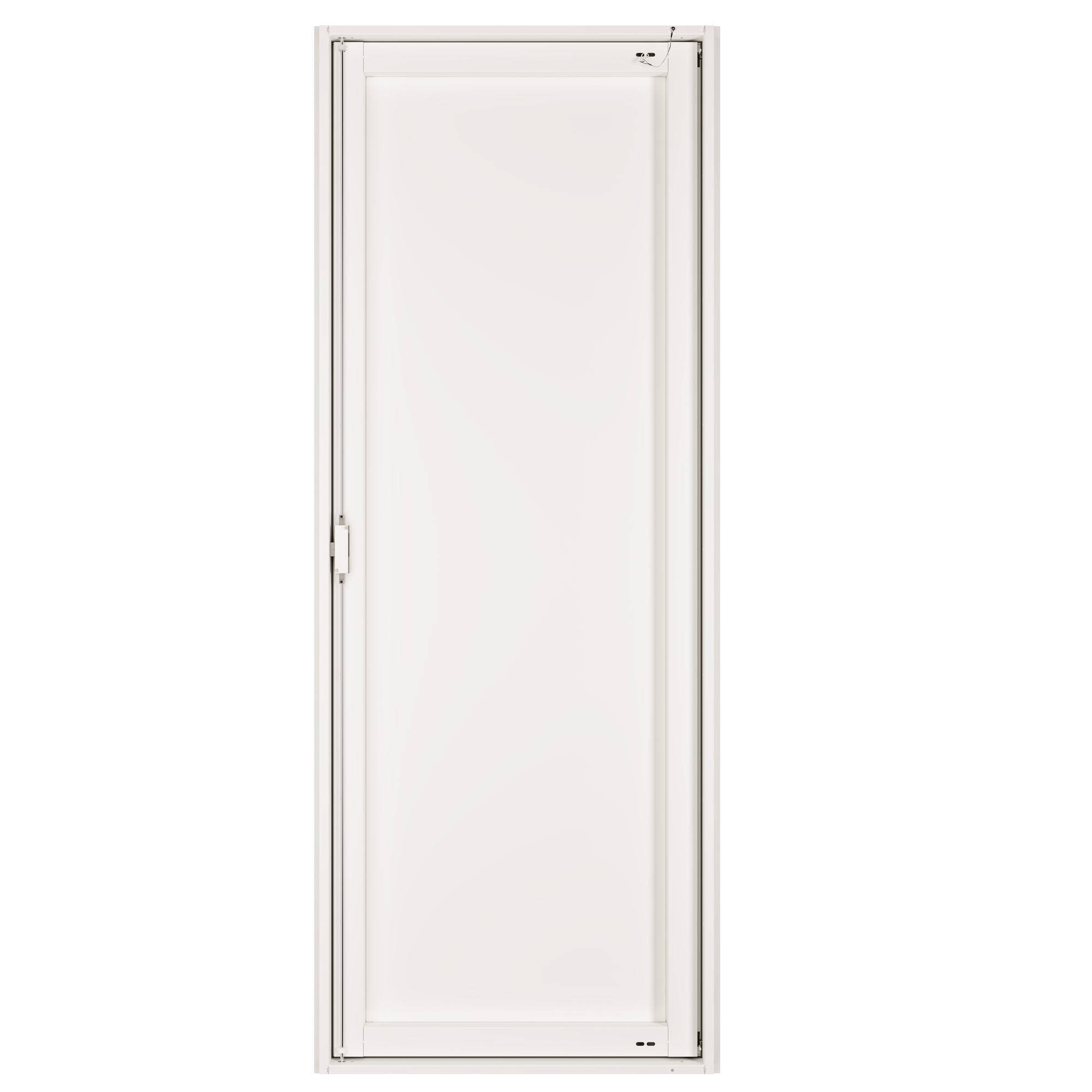

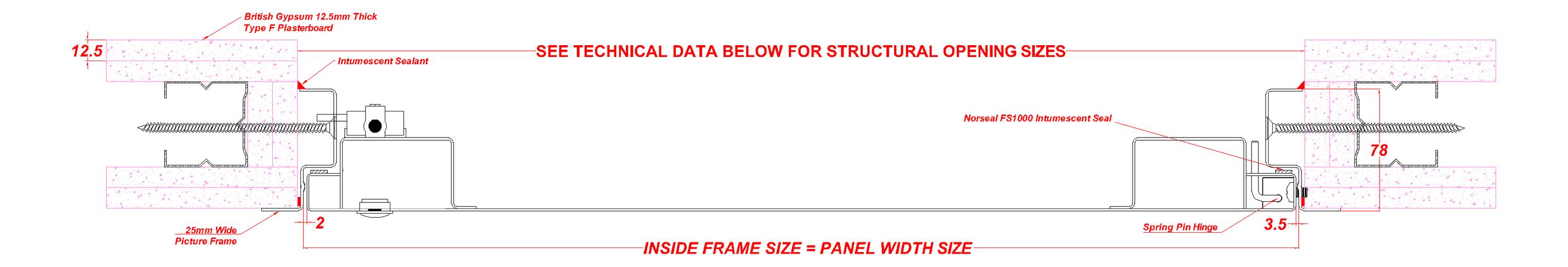

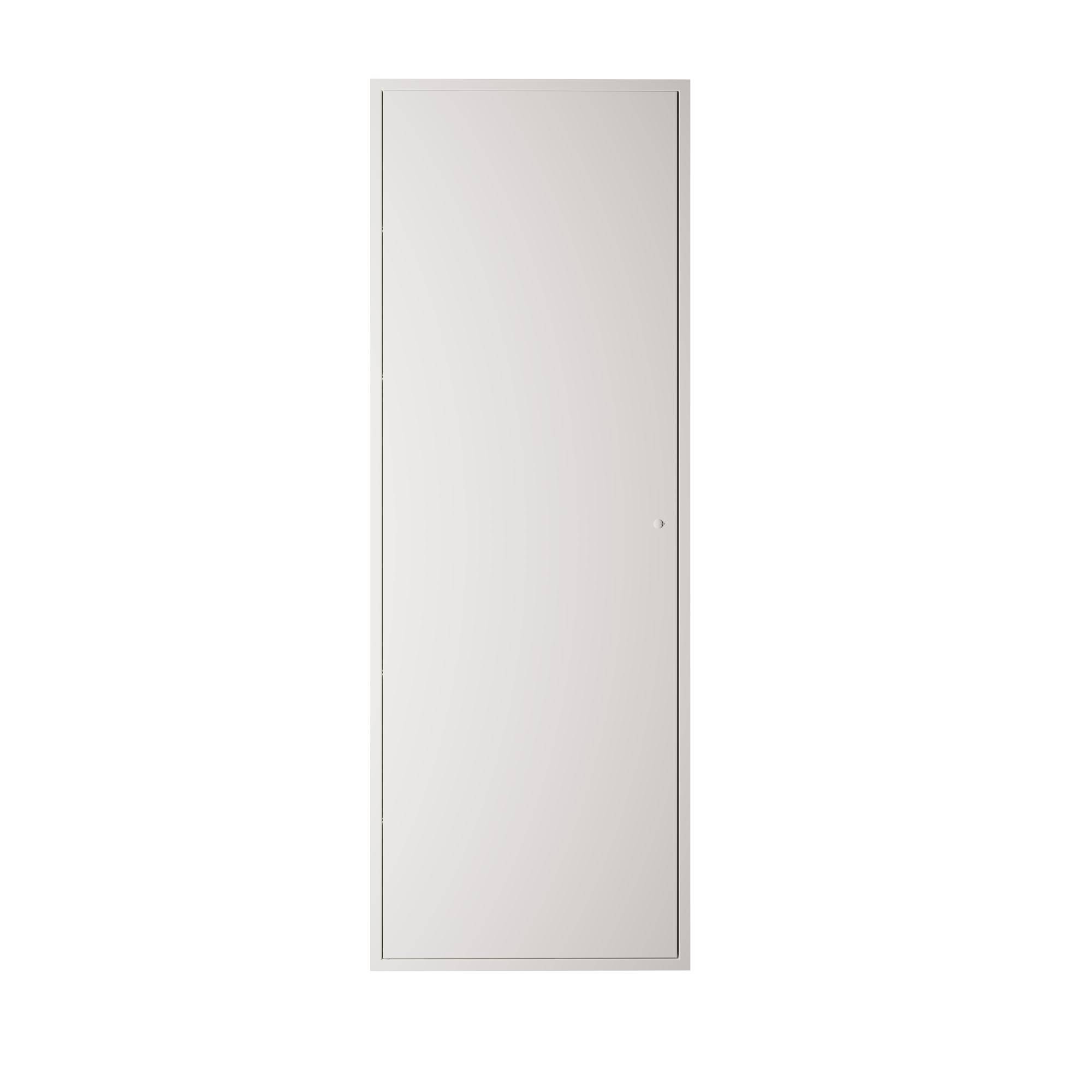

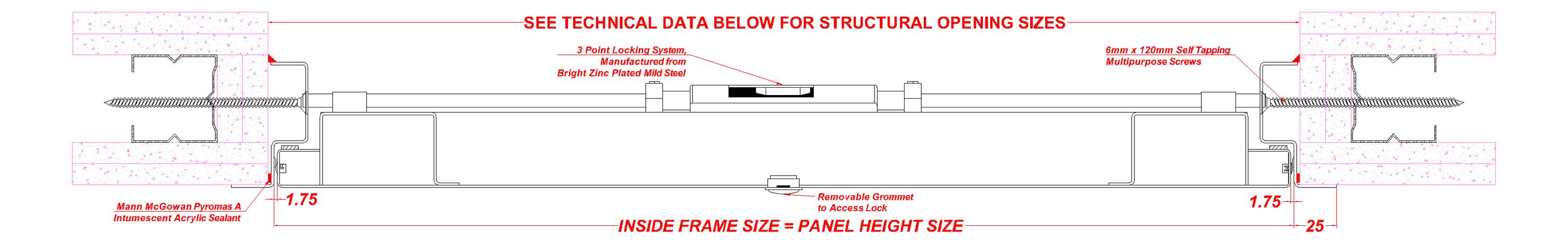

| Structural Opening Size |
Panel Height Size + 7mm x Panel Width Size + 7mm |
| Panel Size Formula H x Wmm |
Inside Frame Size |

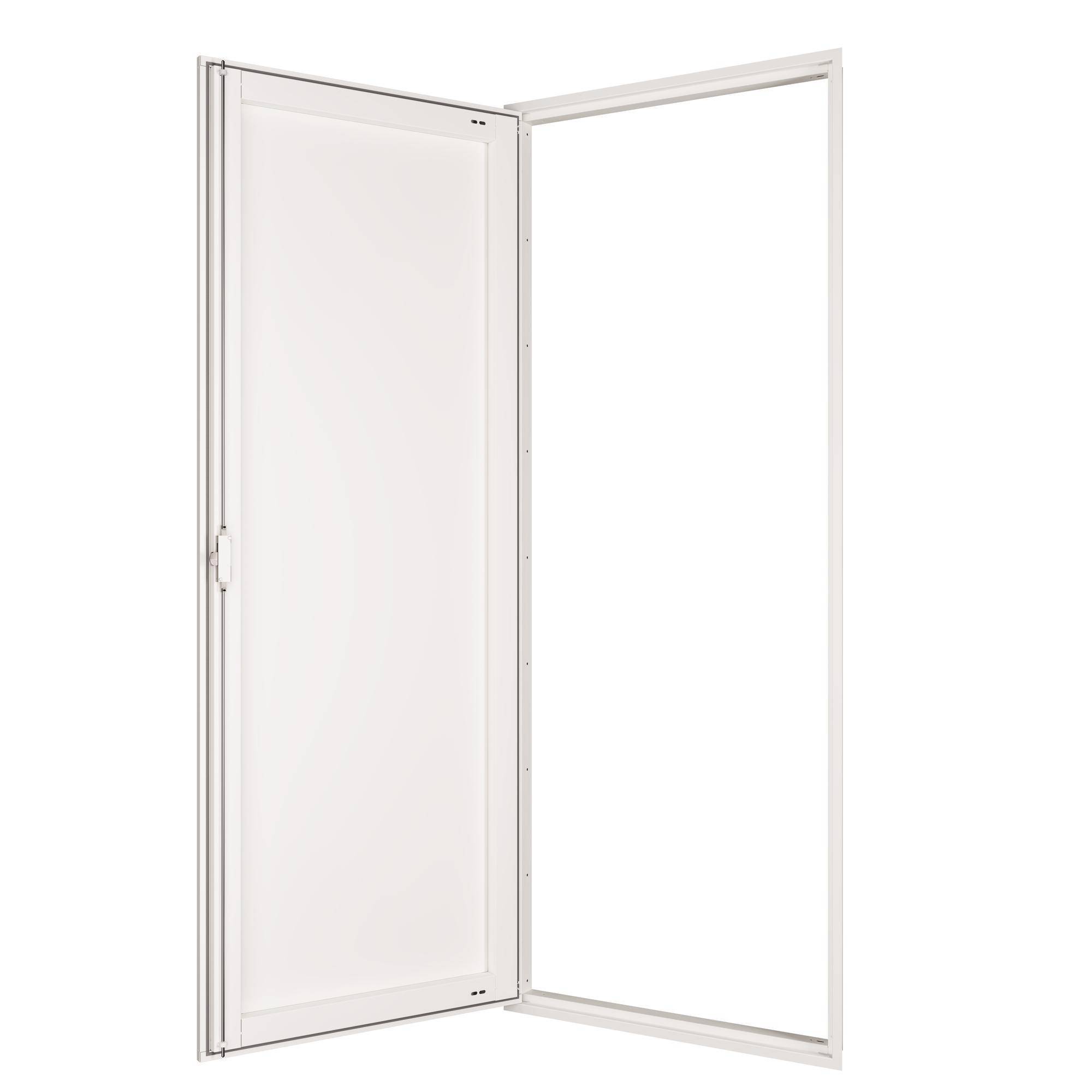

| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Panel Height - 50mm x Panel Width - 100mm |
| Composition / Manufacturing |
| Quality Category |
Premium Range |
| Product Design Category |
Standard Product |
| Ironmongery Details |
3 Point Locking System. Bright Zinc Plated Mild Steel,Fast Fit Spring Pin Pivot Hinge manufactured from electroplated steel |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
25mm |
| Frame Steel Thickness |
1.5mm |
| Door Steel Thickness |
1.2mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth |
78mm |
| Seal Type |
Norseal FS1000 Self Adhesive Intumescent Foam Tape ,Sealed to All Door Closing Edges |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
