| Technical Data |
| Wall or Ceiling or Both (Dual) |
Ceiling |
| Fire Rating |
No Rating |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. |
300x600mm up to 1200x1200mm |
| Smoke Tested |
No Rating |
| Airtightness Tested |
No Rating |
| Acoustic Test Standard |
BS EN ISO 10140-2: 2010 |
| Acoustic Rating |
40dB |
| Corrosion class C1, C2, C3, C4 |
C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Wall Types |
Not Suitable for a Wall Application |
| Ceiling Types |
MF Ceiling System,Plasterboard clad ceilings |

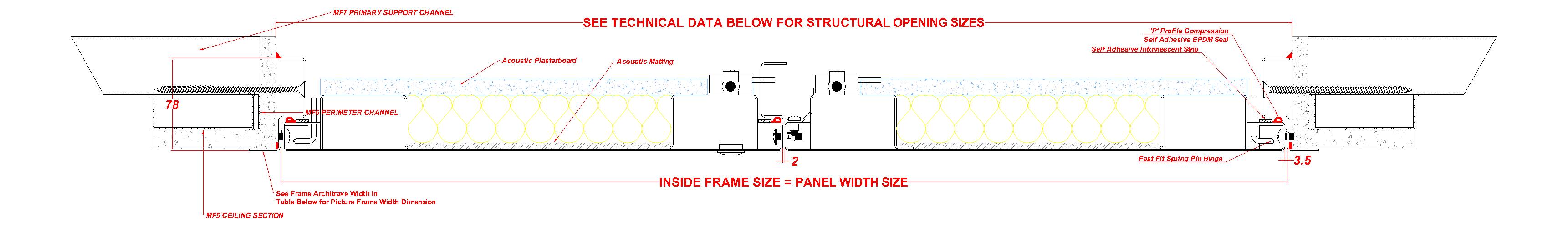

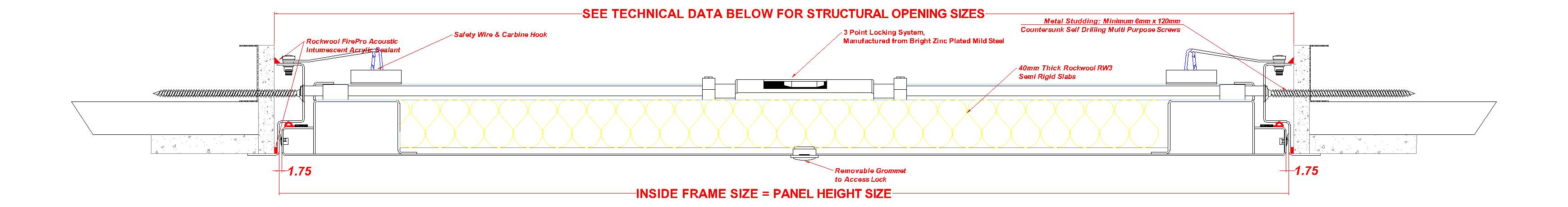

| Structural Opening Size |
Panel Height Size + 10mm x Panel Width Size + 10mm |
| Panel Size Formula H x Wmm |
Inside Frame Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Panel Height - 50mm x Panel Width - 150mm |
| Composition / Manufacturing |
| Quality Category |
Premium Range |
| Product Design Category |
Standard Product |
| Ironmongery Details |
3 Point Locking System. Bright Zinc Plated Mild Steel,Fast Fit Spring Pin Pivot Hinge manufactured from electroplated steel,Safety Wire Cable assembly 2mm Ø with loops both ends at 200mm centres eye to eye. 4mm Ø Bright Zinc Plated (BZP) Steel Carbine Snap Hook |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
25mm |
| Frame Steel Thickness |
1.5mm |
| Door Steel Thickness |
1.2mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth |
78mm |
| Board Infill Type |
12.5mm Thick GTEC dB Board |
| Door Insulation Type |
5mm Thick IsoBase R50 ,40mm Thick Rockwool RW3 |
| Seal Type |
9mm x 5.5mm White 'P' Profile Compression Self Adhesive Neoprene Seal,Envirograph G10/10 10mm x 2mm Self Adhesive Intumescent Strip,Sealed to All Door Closing Edges |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
