| Technical Data |
| Wall or Ceiling or Both (Dual) |
Wall |
| Fire Rating |
No Rating |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. |
150x150mm up to 1200x1000mm |
| Smoke Tested |
No Rating |
| Airtightness Tested |
No Rating |
| Acoustic Tested |
No Rating |
| Corrosion class C1, C2, C3, C4 |
C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Wall Types |
Plasterboard clad partitions |
| Ceiling Types |
Not Suitable for a Ceiling Application |

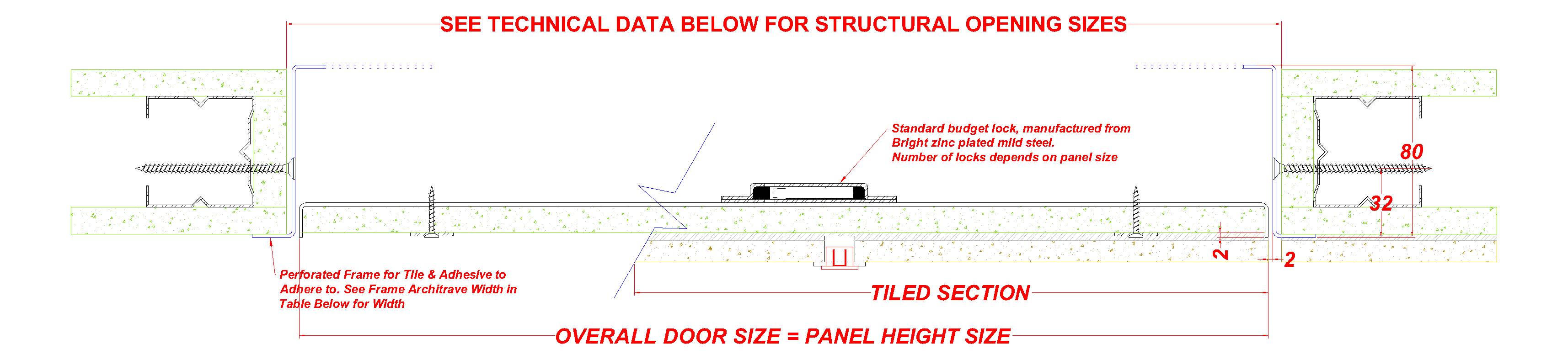

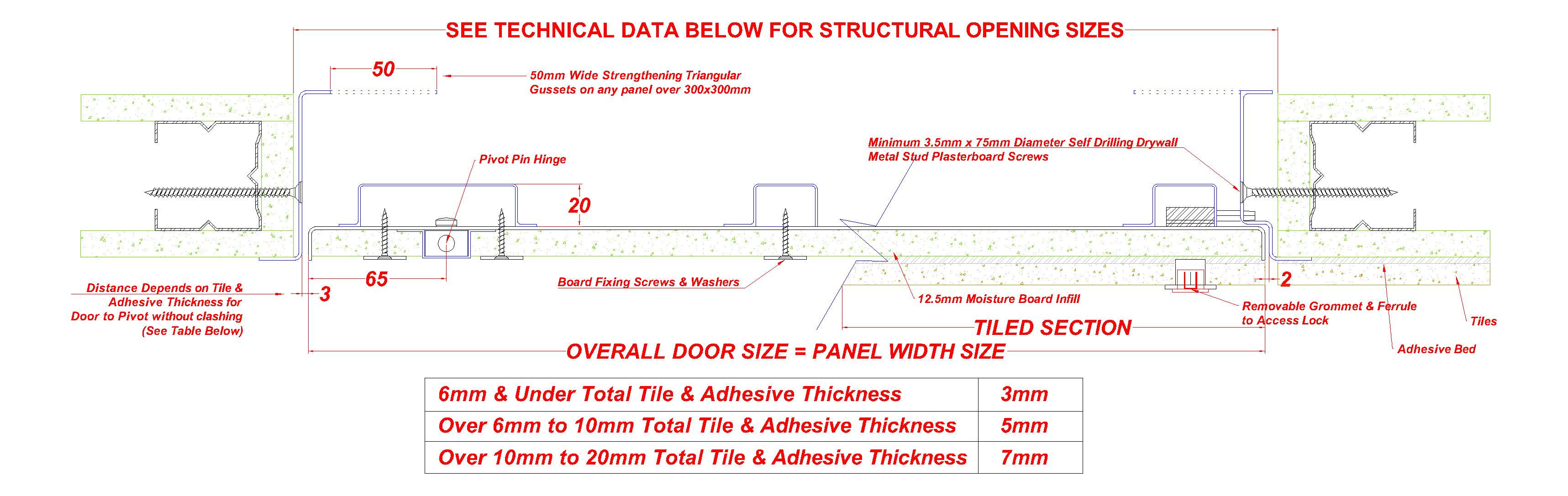

| Structural Opening Size |
Total Tile & Adhesive Thickness 6mm and under: Panel Height Size + 12mm x Panel Width Size + 13mm,Total Tile & Adhesive Thickness over 6mm to 10mm: Panel Height Size + 12mm x Panel Width Size + 15mm,Total Tile & Adhesive Thickness over 10mm to 20mm: Panel Height Size + 12mm x Panel Width Size + 17mm |
| Panel Size Formula H x Wmm |
Door Leaf Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Up to Panel Size of 300mm Height x 300mm Width: Panel Height – 30mm x Panel Width -110mm,Over Panel Size of 300mm Height x 300mm Width: Panel Height – 130mm x Panel Width -160mm |
| Composition / Manufacturing |
| Quality Category |
Premium Range |
| Product Design Category |
Standard Product |
| Ironmongery Details |
Standard budget lock manufactured from Bright zinc plated mild steel,[Pin Pivot Hinge, manufactured from electroplated steel],[Stainless Steel Lock Hole Ferrule, Manufactured from 304 Grade Stainless Steel],[12.7mm Diameter White Bung, Manufactured from Nylon] |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
20mm |
| Frame Steel Thickness |
1.5mm |
| Door Steel Thickness |
1.5mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth |
80mm |
| Board Infill Type |
12.5mm Thick Moisture Board (IMPORTANT: MOISTURE BOARD INFILL CAN HOLD A TILE & ADHESIVE WEIGHT OF 32KG PER M2) |
| Door Insulation Type |
None |
| Seal Type |
None |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
