| General | |
|---|---|

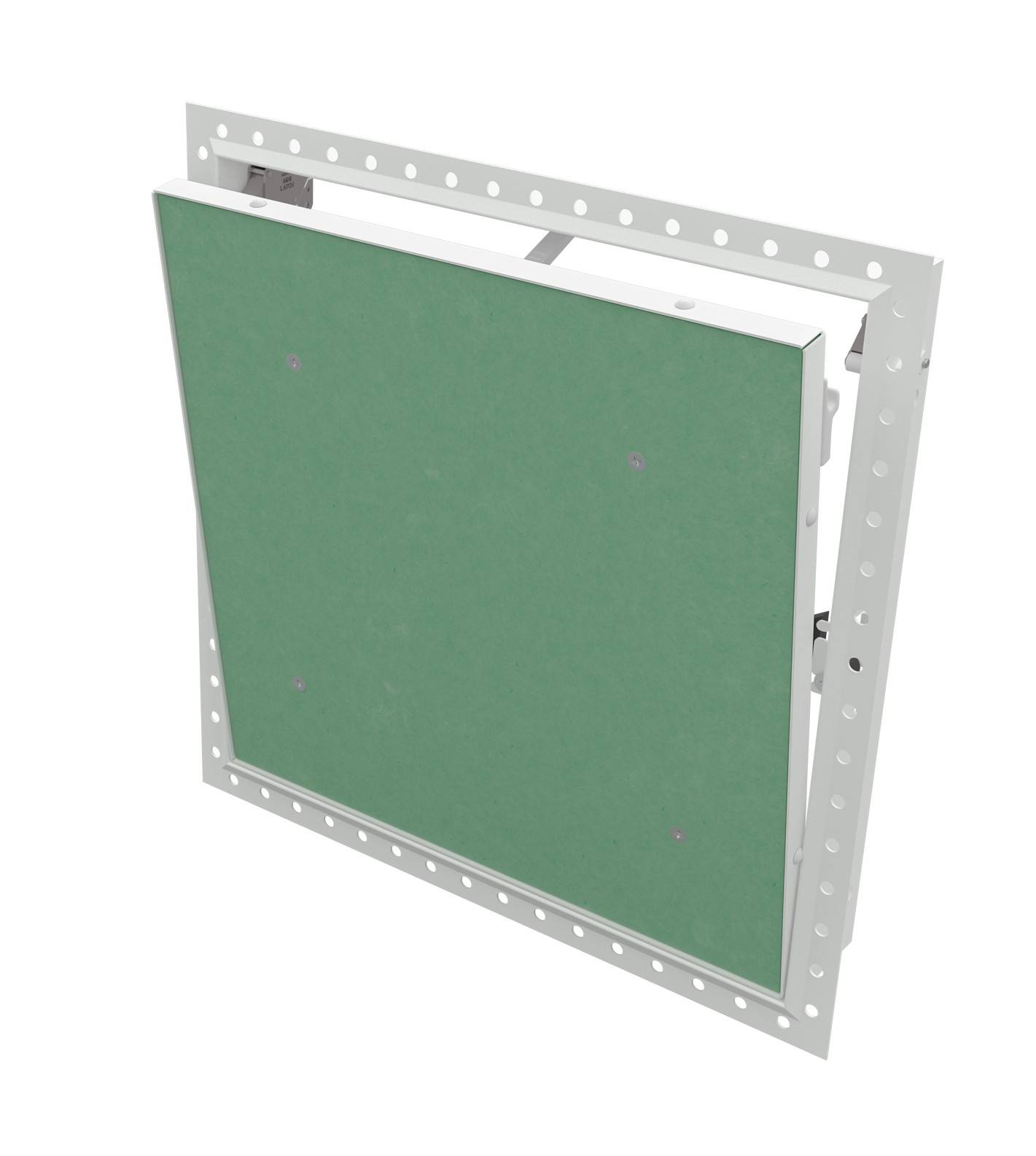

| Long Description | Ceramic Tile Lift Out Wall Access Panel, Supplied with the Patented FlipFix Fitting Device, Non fire rated, Tile Door, Beaded Frame, Mini Touch Catch, Single Door Unit, with a Controlled Action device to stop the door falling away from the frame on opening, Powder Coated RAL 9010 30% Gloss. This product is a lift out door and is hung on the Horizontal. Get your panel installed in as little as 5 minutes. Just flip and fix. Say goodbye to wood, screws and glue! |
| Dimensions | |
|---|---|
| Height Range | 150 - 600 mm |
| Width Range | 150 - 600 mm |
| Technical Data | |
|---|---|
| Wall or Ceiling or Both (Dual) | Wall |
| Fire Rating | No Rating |
| Smoke Tested | No Rating |
| Airtightness Tested | No Rating |
| Acoustic Tested | No Rating |
| Corrosion class C1, C2, C3, C4 | C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Important Safety Notice | FlipFix access panels are for inspection purposes only. They should not be climbed through & used to support body weight. |
| Ceiling Types | Not Suitable for a Ceiling Application |

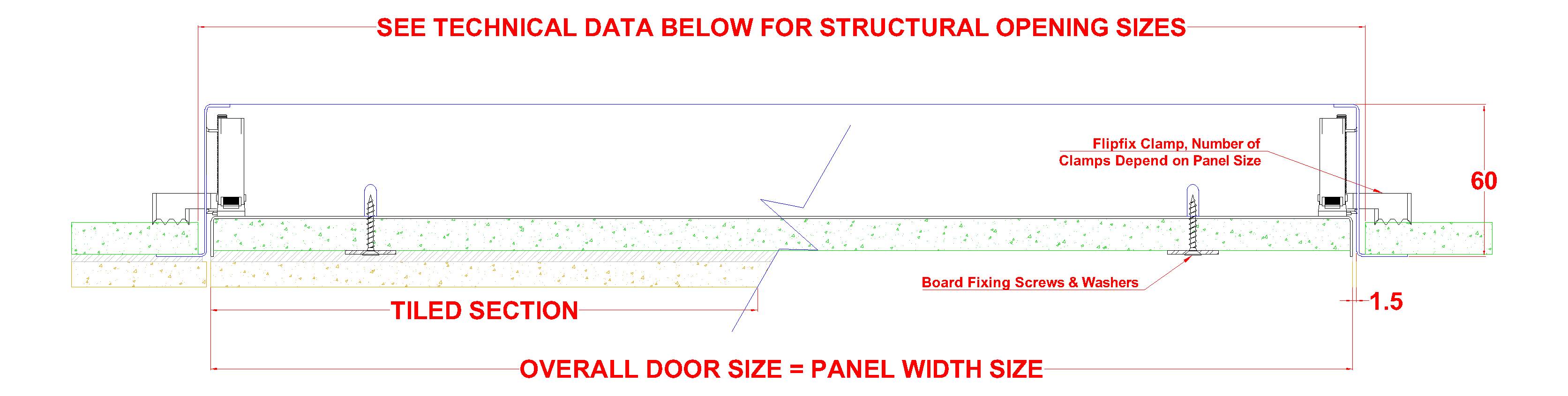

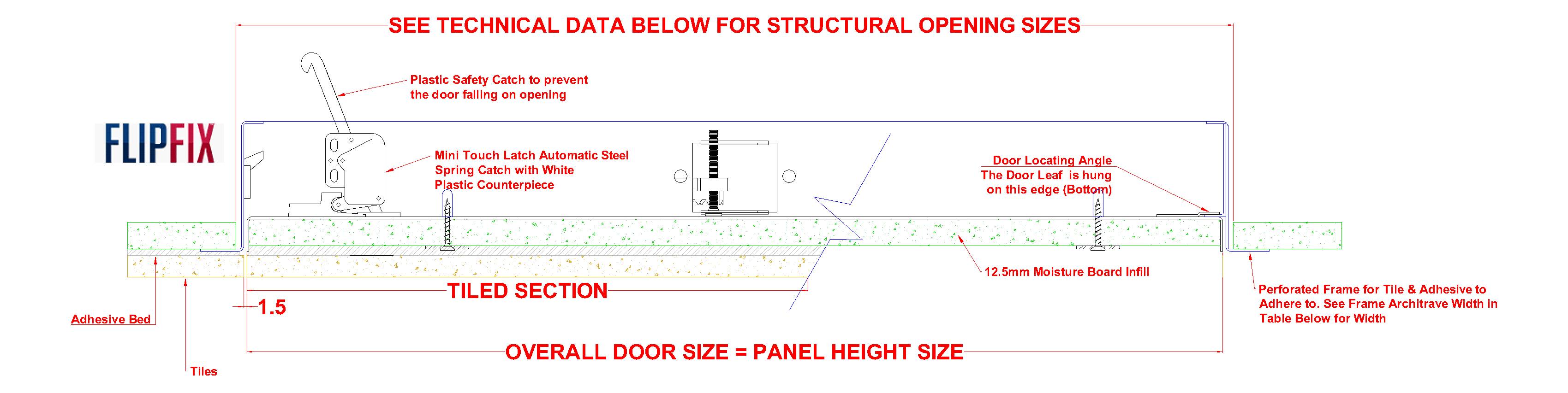

| Structural Opening Size | Panel Height Size + 10mm x Panel Width Size + 10mm |
| Panel Size Formula H x Wmm | Door Leaf Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees | Panel Height - 30mm x Panel Width - 30mm |
| Composition / Manufacturing | |
|---|---|
| Quality Category | Budget Range |
| Product Design Category | Standard Product |

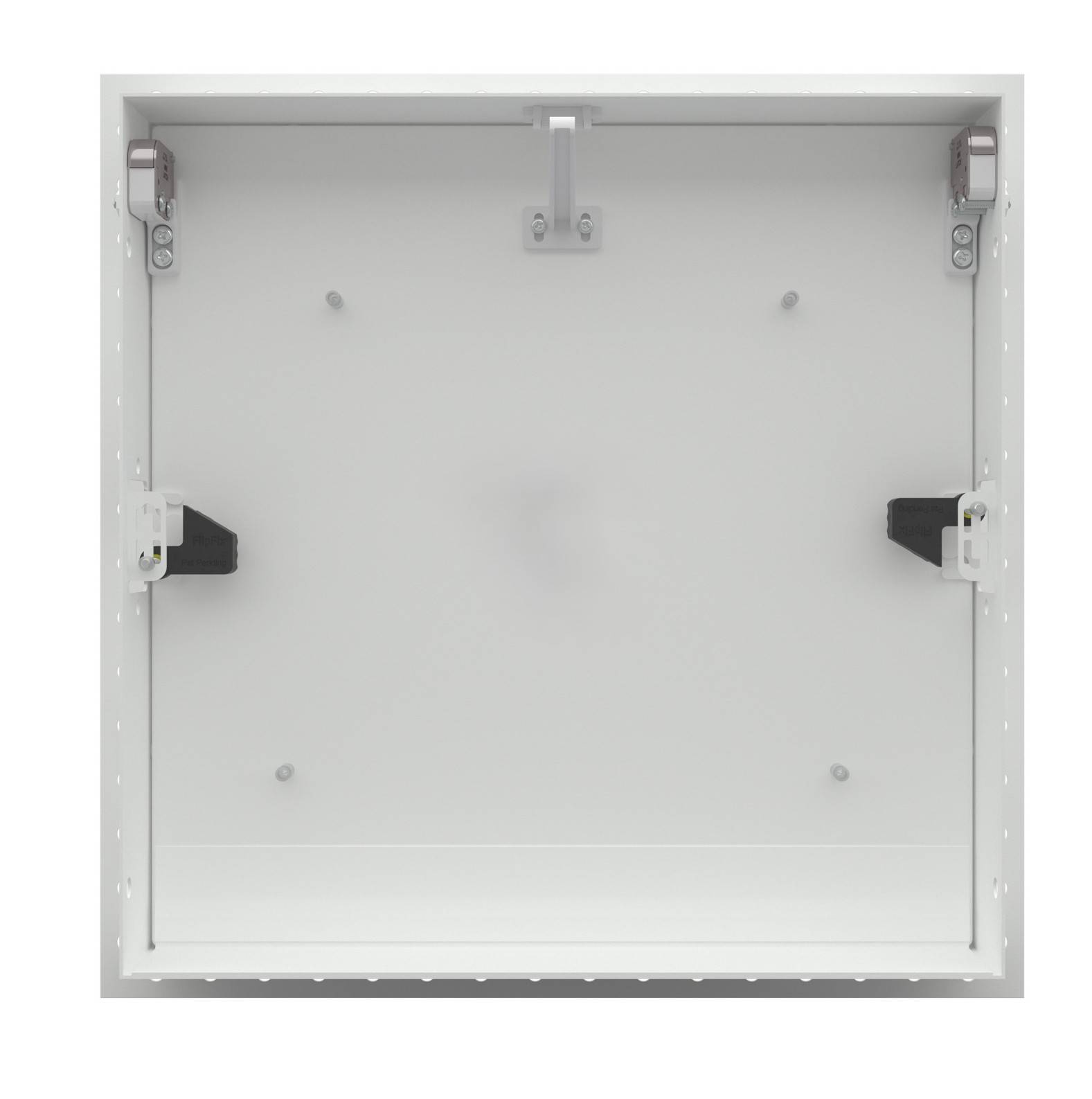

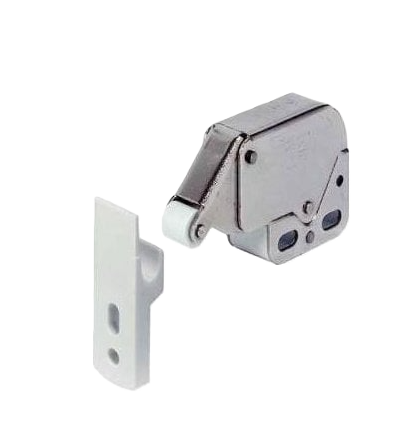

| Ironmongery Details | Mini Touch Latch Automatic Steel Spring Catch,Plastic Safety Catch Device to prevent the door falling away from the frame on opening |
| Lock Security Level | Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) | 20mm |
| Frame Steel Thickness | 0.9mm |
| Door Steel Thickness | 0.9mm |
| Door & Frame Material Grade | Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth | 60mm |

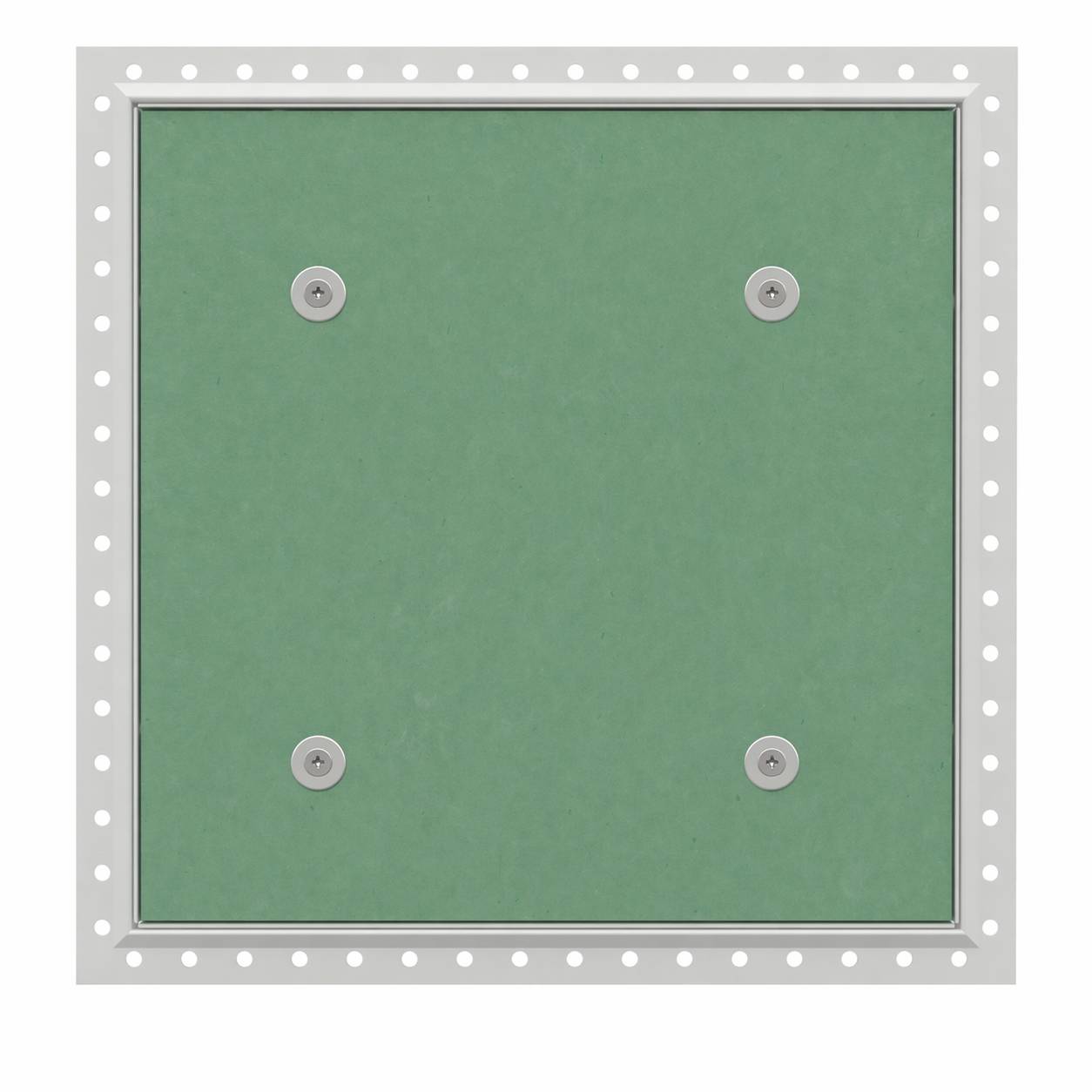

| Board Infill Type | 12.5mm Thick Moisture Board (IMPORTANT: MOISTURE BOARD INFILL CAN HOLD A TILE & ADHESIVE WEIGHT OF 32KG PER M2) |
| Door Insulation Type | None |
| Seal Type | None |
| Paint Type | Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
