| Technical Data |
| Wall or Ceiling or Both (Dual) |
Ceiling |
| Fire Rating |
1 Hour Fire Rated |
| Fire Test Standard |
BS 476: PART 22: 1987 |
| Fire Test Classification |
Integrity (E) |
| Fire Tested Side |
Ceiling application Face (Room Side / opening down towards the fire risk side) |
| Fire Tested Size H x W mm |
1000x1000mm |
| Assessed Maximum Panel Sizes |
No increase permitted |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. |
300x300mm up to 1000x1000mm |
| Smoke Tested |
No Rating |
| Airtightness Tested |
No Rating |
| Acoustic Tested |
No Rating |
| Corrosion class C1, C2, C3, C4 |
C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Wall Types |
Not Suitable for a Wall Application |
| Ceiling Types |
[Other rated ceiling constructions, not listed below, may also be acceptable, subject to expert advice from a qualified fire consultant],MF Ceiling System |

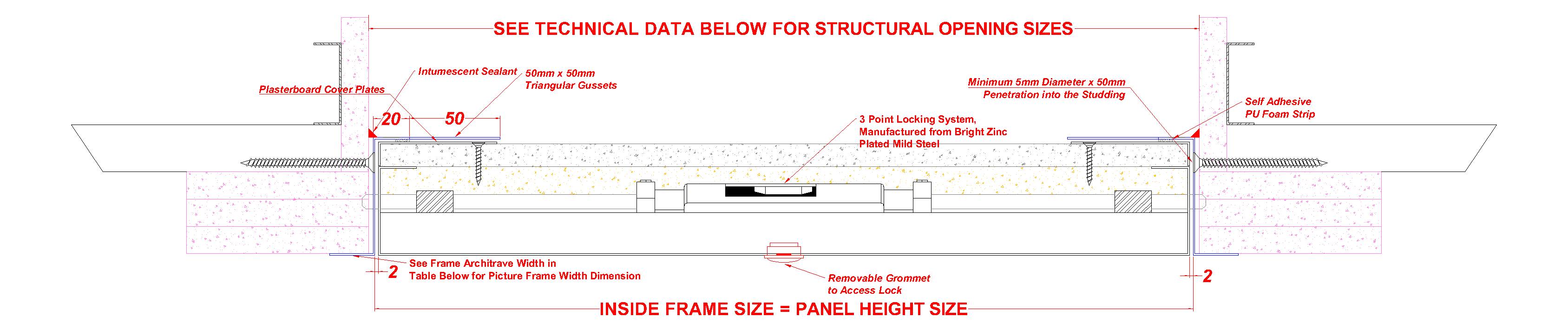

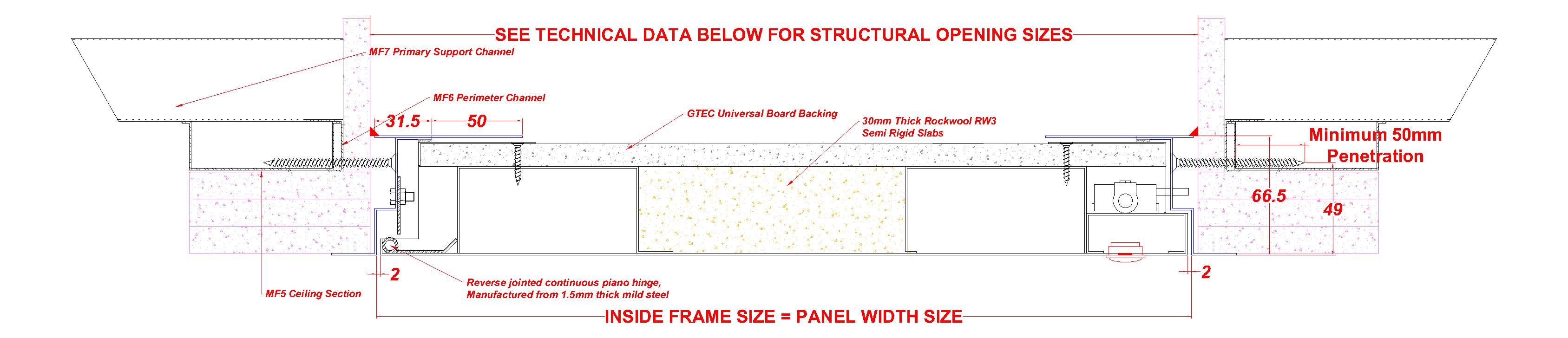

| Structural Opening Size |
Panel Height Size + 7mm x Panel Width Size + 7mm |
| Panel Size Formula H x Wmm |
Inside Frame Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Panel Height - 150mm x Panel Width - 175mm |
| Composition / Manufacturing |
| Quality Category |
Mid Range |
| Product Design Category |
Bespoke / Special Configuration Product |
| Ironmongery Details |

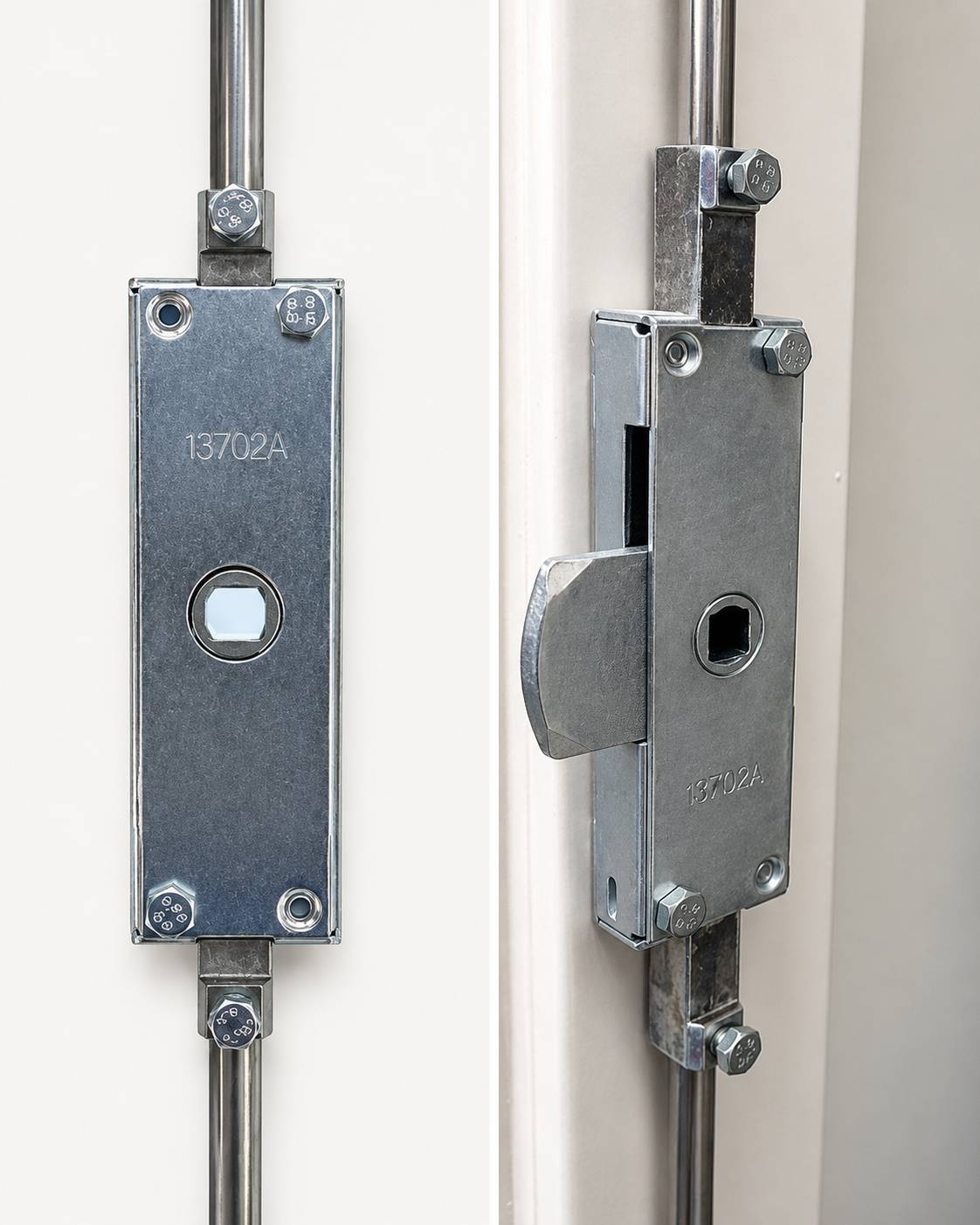

3 Point Locking System. Bright Zinc Plated Mild Steel,Continuous steel Piano Hinge |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
25mm |
| Frame Steel Thickness |
1.2mm |
| Door Steel Thickness |
0.9mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth |
66.5mm |
| Board Infill Type |
12.5mm Thick GTEC Universal Board |
| Door Insulation Type |
30mm Thick Rockwool RW3 |
| Seal Type |
8mm x 4mm Self Adhesive Light Grey PU Draught Foam Strip,Sealed to All Door Closing Edges |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
