| General | |
|---|---|

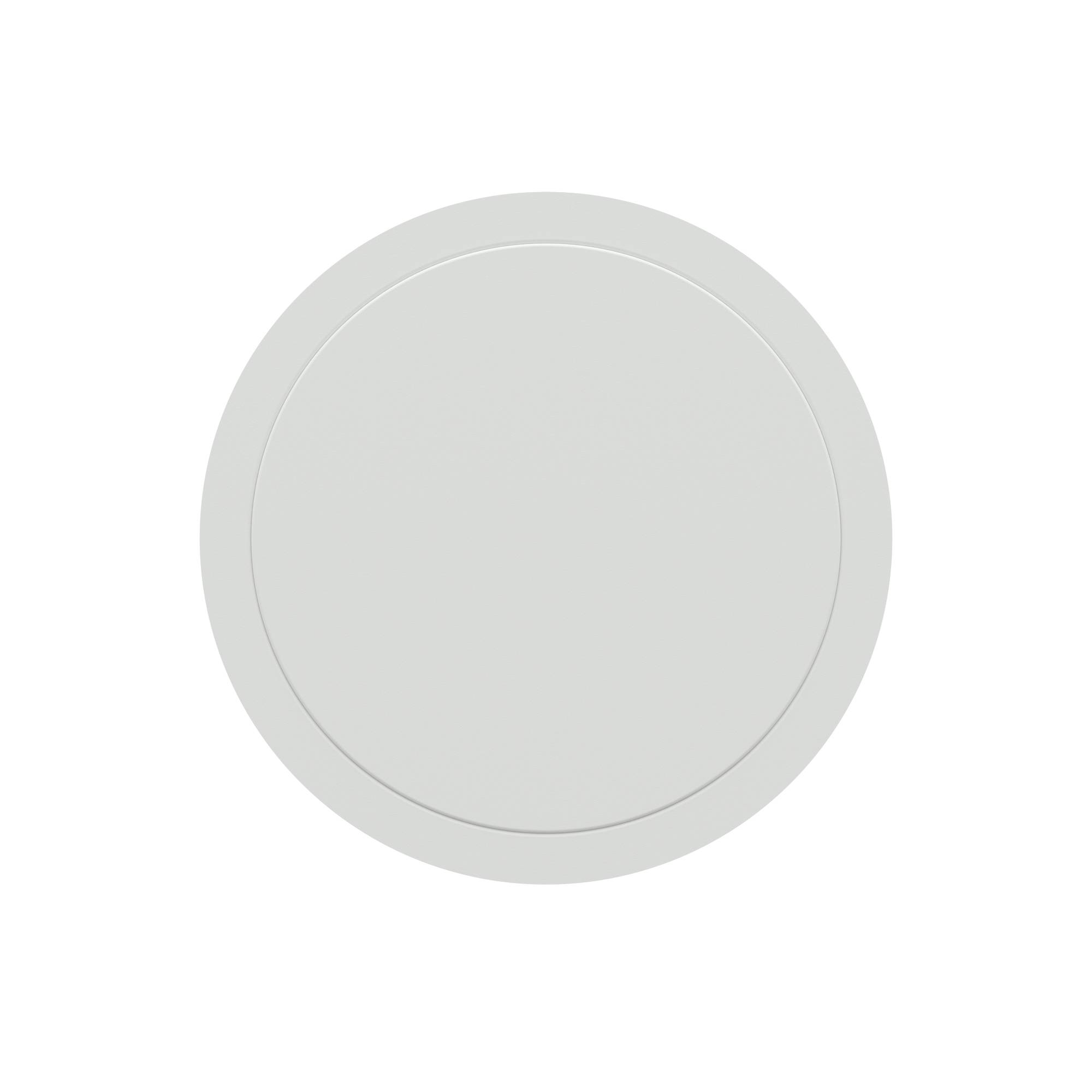

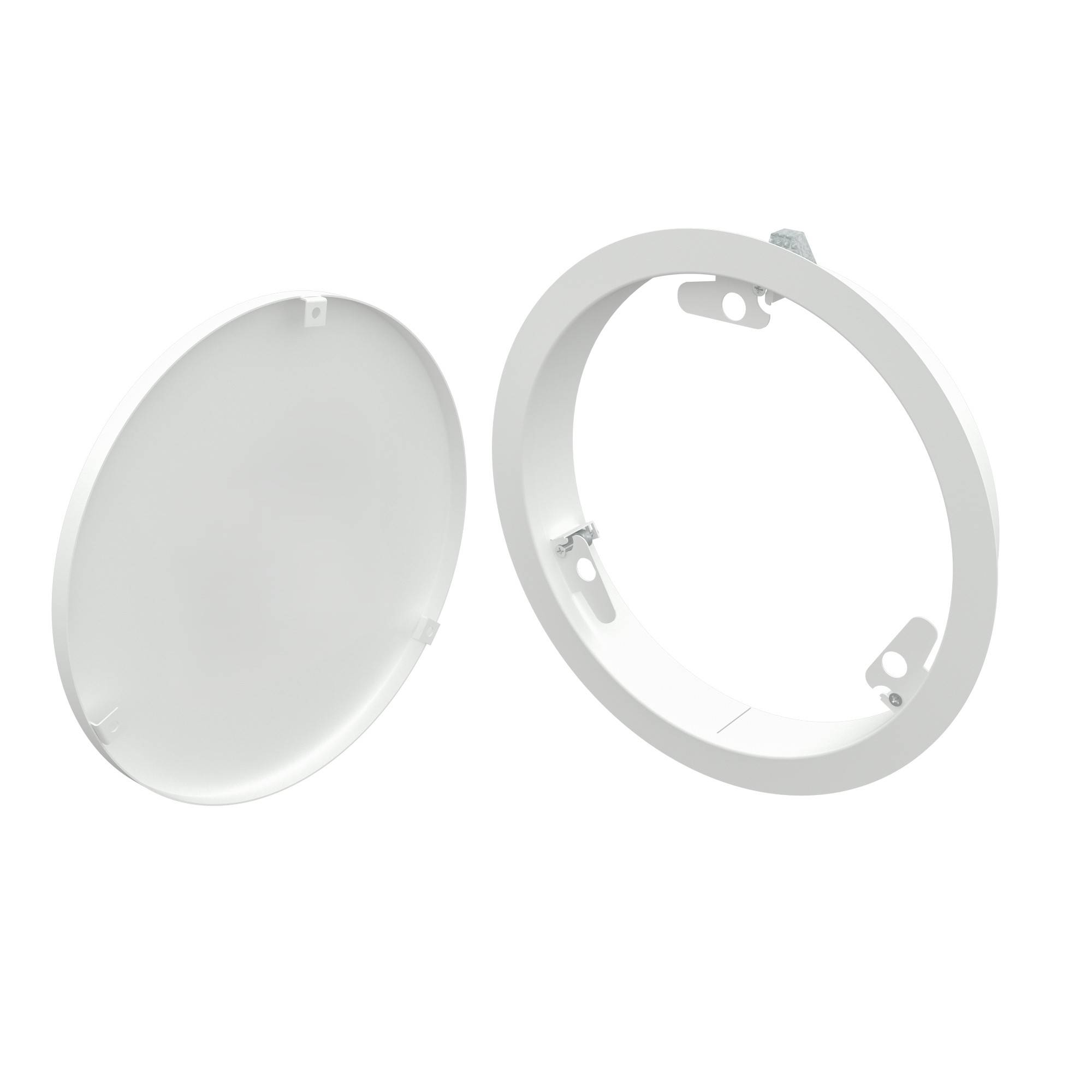

| Long Description | Metal Faced Ceiling Access Panel, Supplied with the Patented FlipFix Fitting Device, 2 Hour fire rated, Metal Door, 25mm wide Picture Frame, No Lock, Single Door Unit, Lift Out Door, Circular Door, Fitted with a Safety Wire, Powder Coated RAL 9010 30% Gloss. Get your panel installed in as little as 5 minutes. Just flip and fix. Say goodbye to wood, screws and glue! |
| Dimensions | |
|---|---|
| Height Range | 200 - 300 mm |
| Width Range | 200 - 300 mm |
| Technical Data | |
|---|---|
| Wall or Ceiling or Both (Dual) | Ceiling |
| Fire Rating | 2 Hour Fire Rated |
| Fire Test Standard | BS EN 1364-2: 2018 |
| Fire Test Classification | Integrity (E) |
| Fire Tested Side | Ceiling application Face (Room Side / opening down towards the fire risk side) |
| Fire Tested Size H x W mm | 300mm Diameter |
| Assessed Maximum Panel Sizes | No increase permitted |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. | 200mm up to 300mm Diameter |
| Smoke Tested | No Rating |
| Airtightness Tested | No Rating |
| Acoustic Tested | No Rating |
| Corrosion class C1, C2, C3, C4 | C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Important Safety Notice | FlipFix access panels are for inspection purposes only. They should not be climbed through & used to support body weight. |
| Wall Types | Not Suitable for a Wall Application |

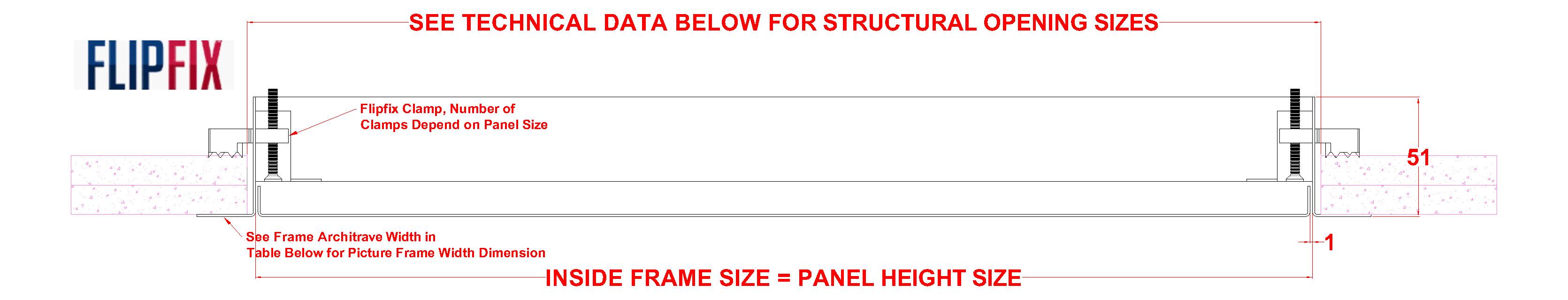

| Structural Opening Size | Panel Diameter Size + 7mm |
| Panel Size Formula H x Wmm | Inside Frame Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees | Panel Diameter Size -60mm |
| Composition / Manufacturing | |
|---|---|
| Quality Category | Mid Range |
| Product Design Category | Standard Product |
| Ironmongery Details | Safety Wire Cable assembly 2mm Ø with loops both ends at 200mm centres eye to eye. 4mm Ø Bright Zinc Plated (BZP) Steel Carbine Snap Hook,[Steel FlipFix fixing device, manufactured from Hot Galvanised Dipped Forged Steel] |
| Lock Security Level | Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) | 25mm |
| Frame Steel Thickness | 0.9mm |
| Door Steel Thickness | 0.9mm |
| Door & Frame Material Grade | Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth | 52mm |
| Board Infill Type | None |
| Door Insulation Type | None |
| Seal Type | None |
| Paint Type | Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
