| Technical Data |
| Wall or Ceiling or Both (Dual) |
Wall |
| Fire Rating |
2 Hour Fire Rated |
| Fire Test Standard |
BS EN 1634-1: 2014+A1:2018 from the face (room side),BS EN 1634-1: 2014+A1:2018 from the rear (services side) |
| Fire Test Classification |
Integrity (E) |
| Fire Tested Side |
Wall application Both Sides (Bidirectional / opening in either direction with respect to the fire risk side) |
| Fire Tested Size H x W mm |
2400x900mm |
| Assessed Maximum Panel Sizes |
No increase permitted |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. |
300x300mm up to 2400x900mm |
| Smoke Test Standard |
BS EN 1634-3: 2004 |
| Air Permeability Test Standard |
BS EN 1026: 2016 |
| Air Permeability Rating |
300Pa CLASS 2 |
| Acoustic Test Standard |
BS EN ISO 10140-2: 2010 |
| Acoustic Rating |
30dB |
| Corrosion class C1, C2, C3, C4 |
C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Ceiling Types |
Not Suitable for a Ceiling Application |

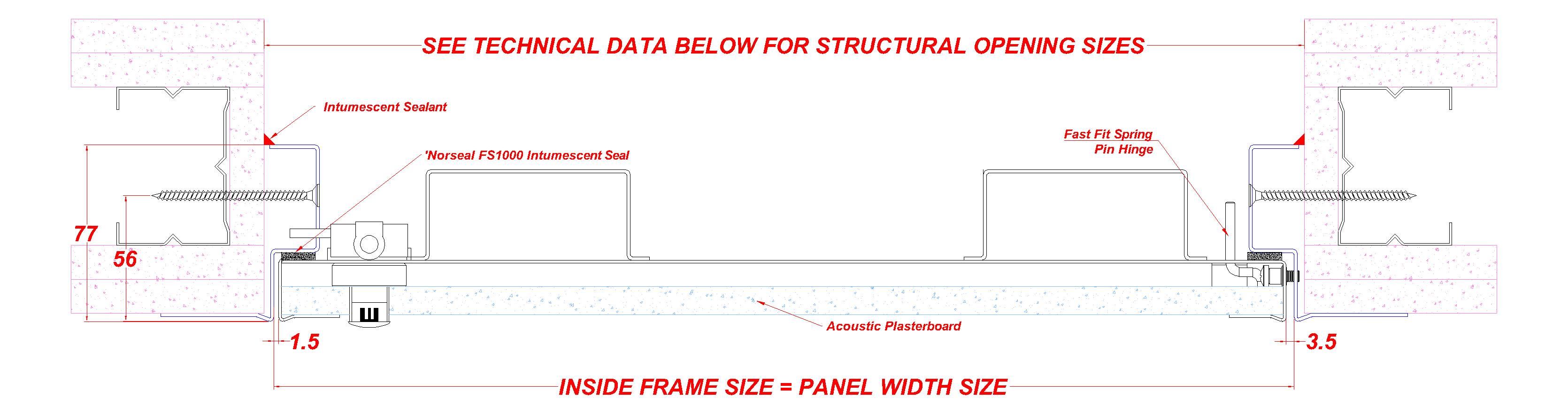

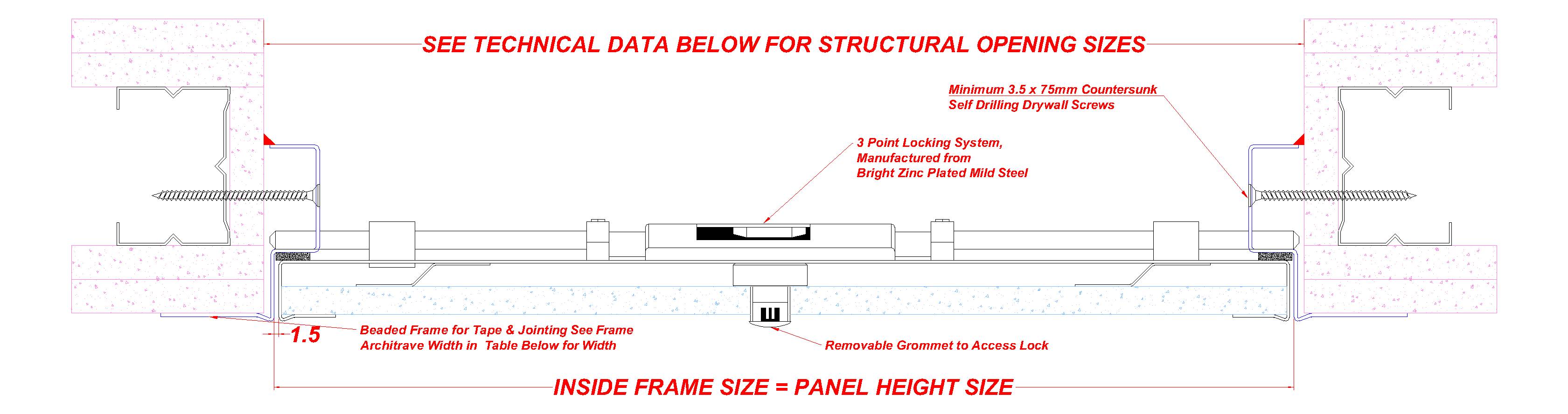

| Structural Opening Size |
Panel Height Size + 7mm x Panel Width Size + 7mm |
| Panel Size Formula H x Wmm |
Inside Frame Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Panel Height - 50mm x Panel Width - 100mm |
| Composition / Manufacturing |
| Quality Category |
Premium Range |
| Product Design Category |
Standard Product |
| Ironmongery Details |
3 Point Locking System. Bright Zinc Plated Mild Steel,Fast Fit Spring Pin Pivot Hinge manufactured from electroplated steel |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
50mm |
| Frame Steel Thickness |
1.2mm |
| Door Steel Thickness |
0.9mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth |
77mm |
| Board Infill Type |
12.5mm Thick GTEC dB Board |
| Seal Type |
Norseal FS1000 Self Adhesive Intumescent Foam Tape |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
