General

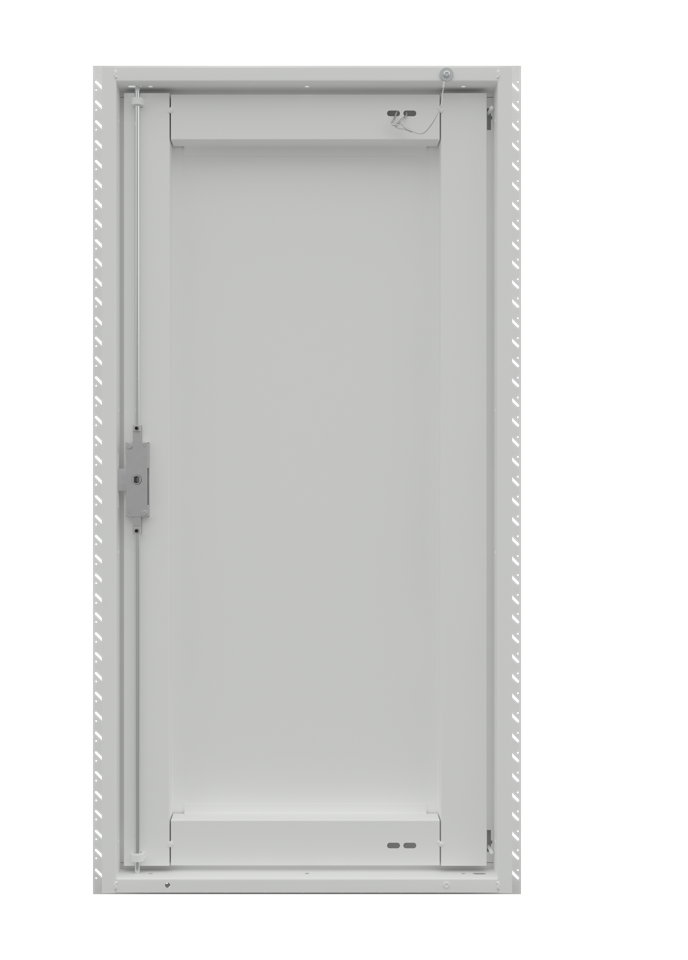

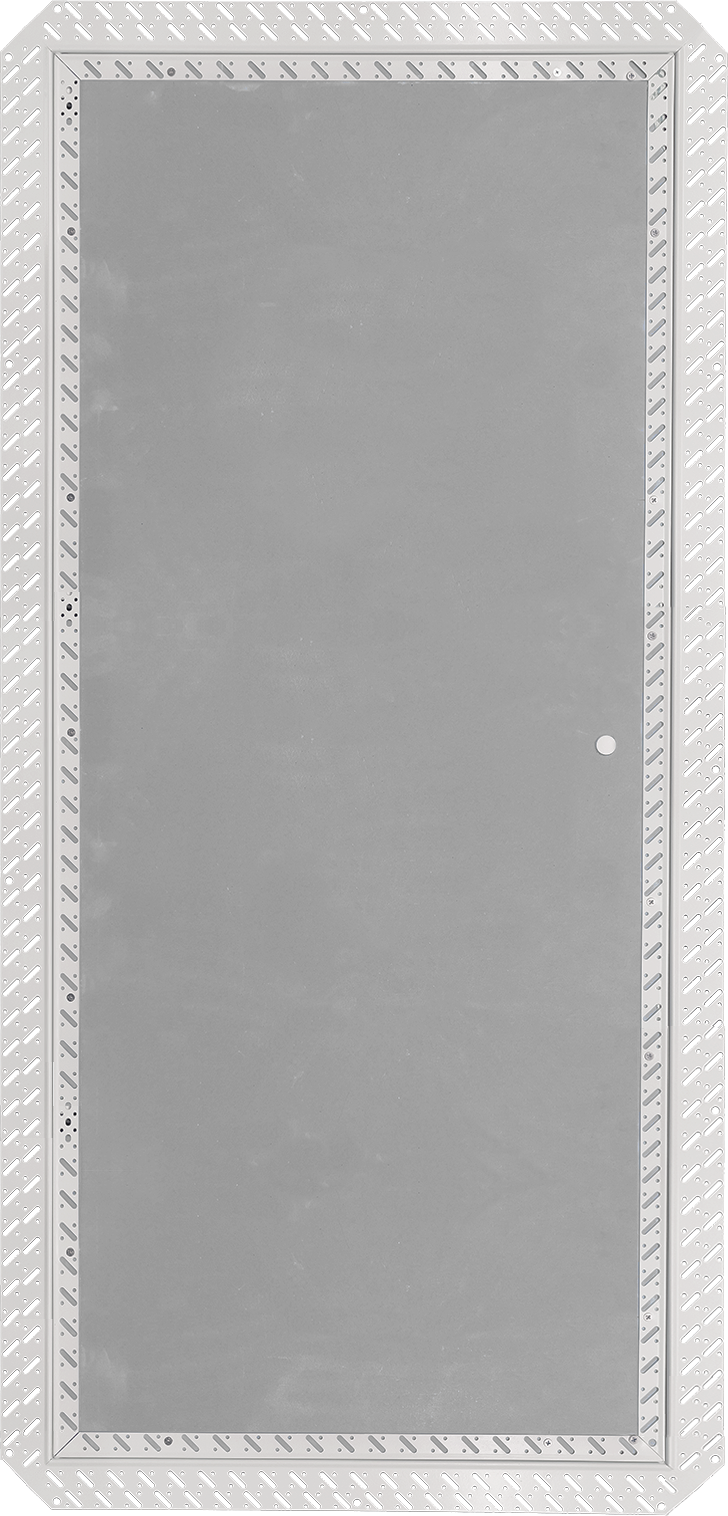

Long Description Premium Plasterboard Faced Riser Door, Supplied with a Spring Pin Hinge System, Non fire rated, Plasterboard Door, Beaded Frame, 3 Point Locking System, Single Door Unit, Powder Coated RAL 9010 30% Gloss.
Dimensions
Height Range 300 - 2,800 mm
Width Range 300 - 900 mm
Technical Data
Wall or Ceiling or Both (Dual) Wall
Fire Rating No Rating
Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. 300x300mm up to 2400x900mm
Smoke Tested No Rating
Airtightness Tested No Rating
Acoustic Tested No Rating
Corrosion class C1, C2, C3, C4 C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels.
Wall Types Plasterboard clad partitions,Most wall types as long as there are sufficiently robust locations to fix the frame to take the weight of the Door & Frame
Structural Opening Size Panel Height Size + 7mm x Panel Width Size + 7mm

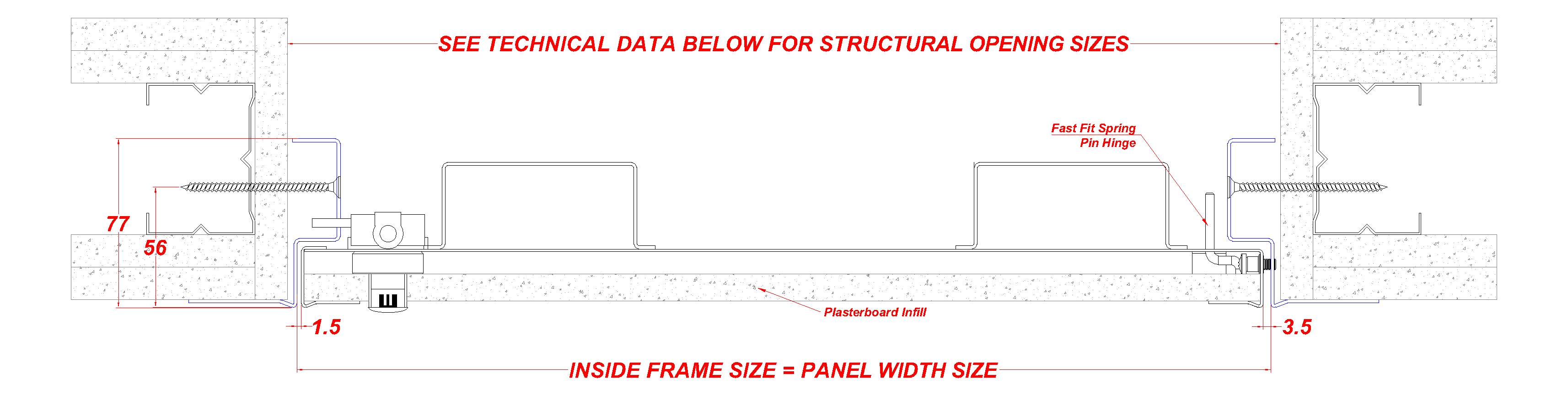

Panel Size Formula H x Wmm Inside Frame Size
Clear opening size through the installed panel with the door leaf open at 90 degrees Panel Height - 50mm x Panel Width - 100mm
Composition / Manufacturing
Quality Category Premium Range
Product Design Category Standard Product

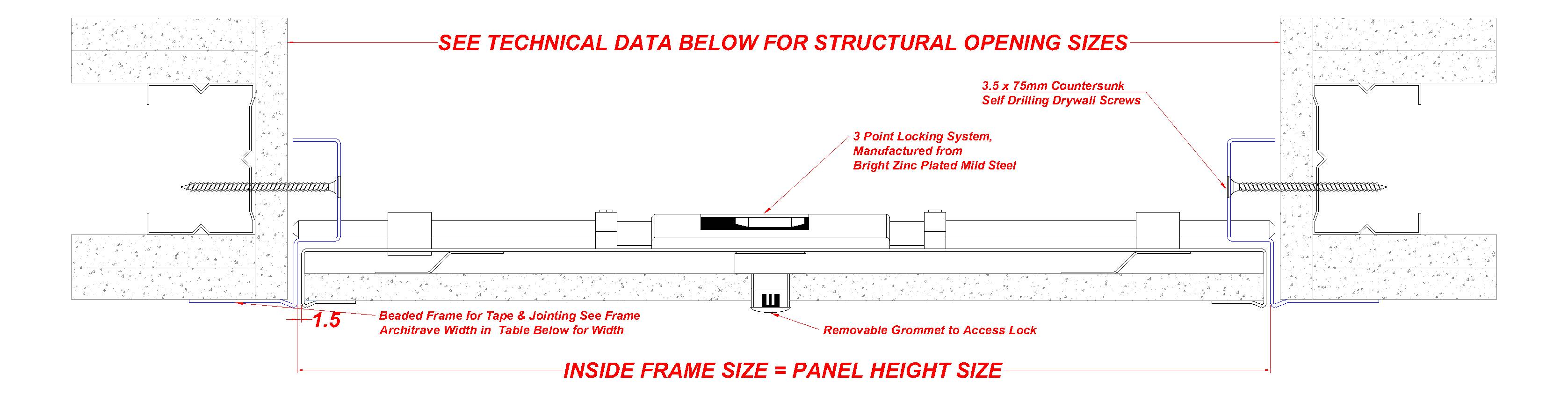

Ironmongery Details 3 Point Locking System. Bright Zinc Plated Mild Steel,Fast Fit Spring Pin Pivot Hinge manufactured from electroplated steel
Lock Security Level Grade 1 – Low Security
Frame Architrave Width (e.g. Picture / Beaded Frame) 50mm
Frame Steel Thickness 1.2mm
Door Steel Thickness 0.9mm
Door & Frame Material Grade Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25
Frame Depth 77mm
Board Infill Type 12.5mm Thick Standard Plasterboard
Seal Type None
Paint Type Polyester Powder Coated,RAL 9010 30% Gloss Pure white
