| Technical Data |
| Wall or Ceiling or Both (Dual) |
Ceiling |
| Fire Rating |
No Rating |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. |
300x450mm up to 1000x1200mm |
| Smoke Tested |
No Rating |
| Airtightness Tested |
No Rating |
| Acoustic Tested |
No Rating |
| Corrosion class C1, C2, C3, C4 |
C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Calculated U Value (Not Tested) Part L Compliant |
This Product has a calculated U Value of 0.760 W/m2K |
| Ceiling Types |
Most ceiling types as long as there are sufficiently robust locations to fix the frame to take the weight of the Door & Frame |
| Structural Opening Size |
Panel Height Size + 7mm x Panel Width Size + 7mm |

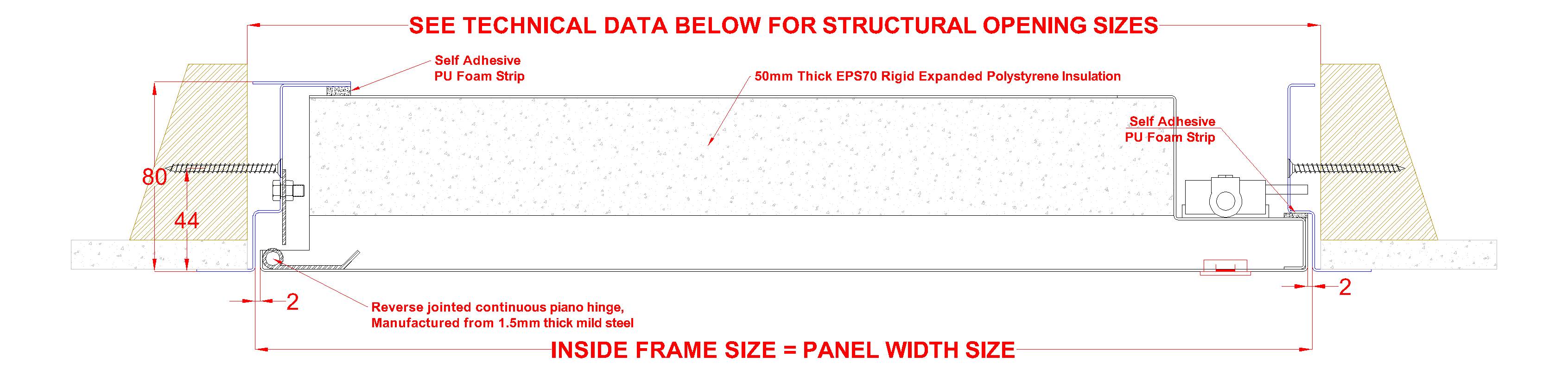

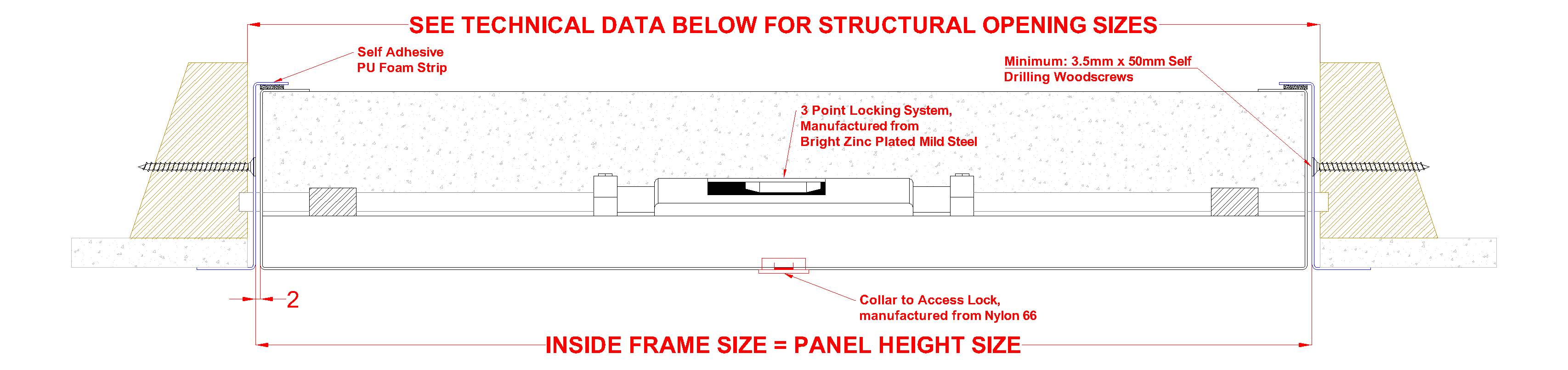

| Panel Size Formula H x Wmm |
Inside Frame Size |

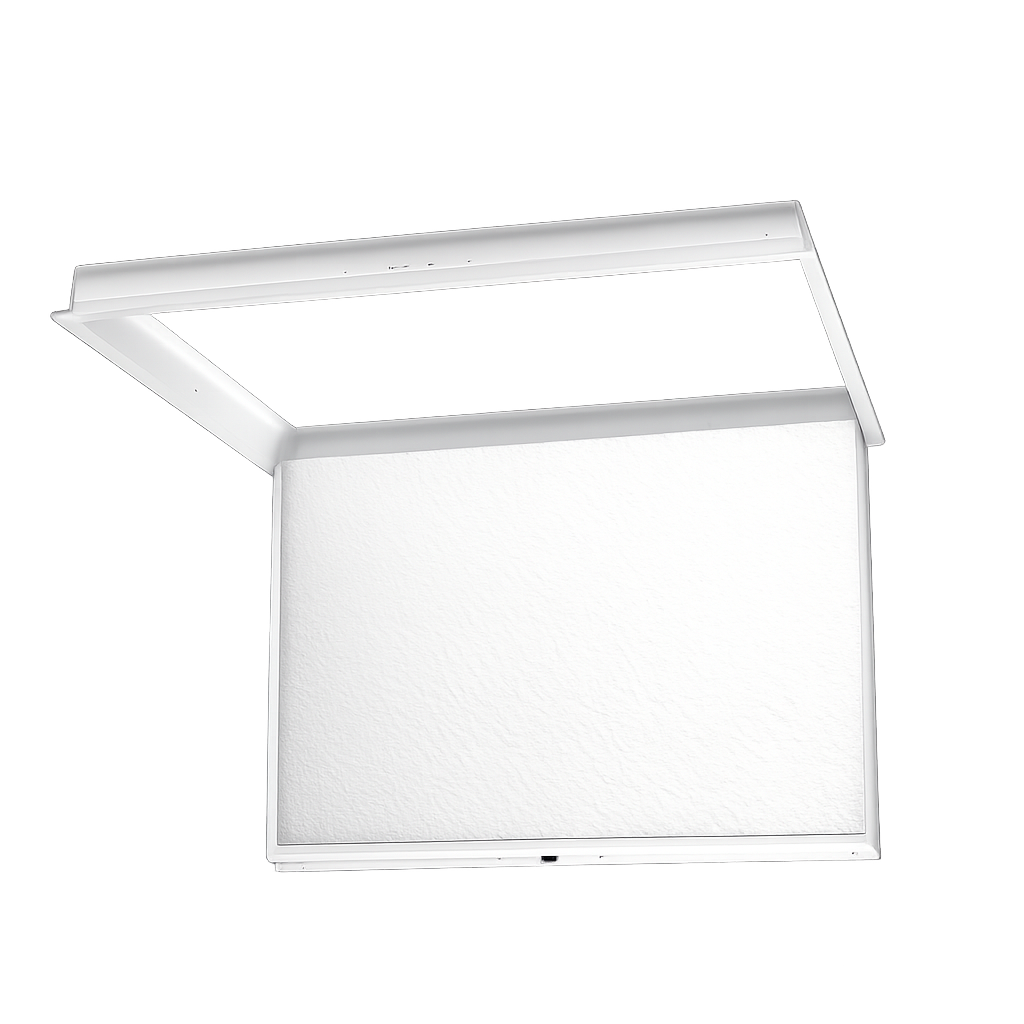

| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Panel Height - 40mm x Panel Width - 100mm |
| Composition / Manufacturing |
| Quality Category |
Mid Range |
| Product Design Category |
Standard Product |
| Ironmongery Details |
3 Point Locking System. Bright Zinc Plated Mild Steel,Continuous steel Piano Hinge |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
25mm |
| Frame Steel Thickness |
1.2mm |
| Door Steel Thickness |
0.9mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth |
80mm |
| Board Infill Type |
None |
| Door Insulation Type |
50mm Thick Polystyrene Insulation Sheets |
| Seal Type |
8mm x 4mm Self Adhesive Light Grey PU Draught Foam Strip,Sealed to All Door Closing Edges |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
