| Technical Data |
| Wall or Ceiling or Both (Dual) |
Dual |
| Fire Rating |
1 Hour Fire Rated |
| Fire Test Standard |
BS EN 1364-2: 2018,BS EN 1634-1: 2014+A1:2018 |
| Fire Test Classification |
Integrity (E) |
| Fire Tested Side |
Wall application Face (Room Side / opening towards the fire risk side) ,Ceiling application Face (Room Side / opening down towards the fire risk side) |
| Fire Tested Size H x W mm |
600x600mm |
| Assessed Maximum Panel Sizes |
No increase permitted |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. |
150x150mm up to 600x600mm |
| Smoke Tested |
No Rating |
| Airtightness Tested |
No Rating |
| Acoustic Tested |
No Rating |
| Corrosion class C1, C2, C3, C4 |
C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Important Safety Notice |
FlipFix access panels are for inspection purposes only. They should not be climbed through & used to support body weight. |
| Ceiling Types |
[Other rated ceiling constructions, not listed below, may also be acceptable, subject to expert advice from a qualified fire consultant],[Plasterboard clad non-loadbearing suspended ceilings, utilising 2No 12.5mm Type F boards (as defined within EN520).],[Board clad non-loadbearing suspended ceilings, utilising 2No layers of 10mm thick Glasroc F Multiboard.] |

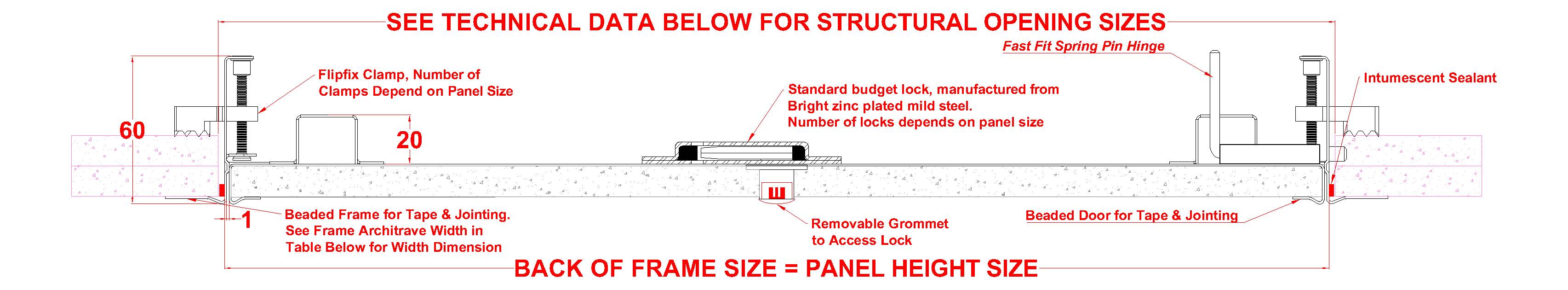

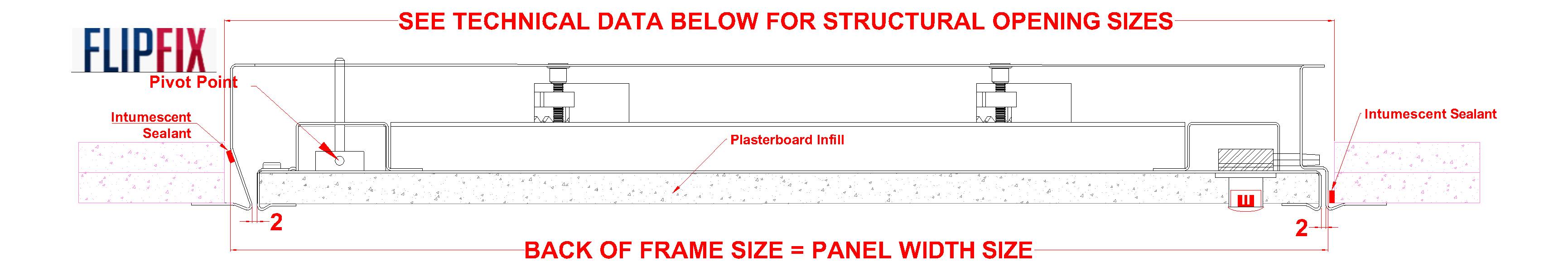

| Structural Opening Size |
Panel Height Size + 5mm x Panel Width Size + 5mm |
| Panel Size Formula H x Wmm |
Overall Back of Frame Size |

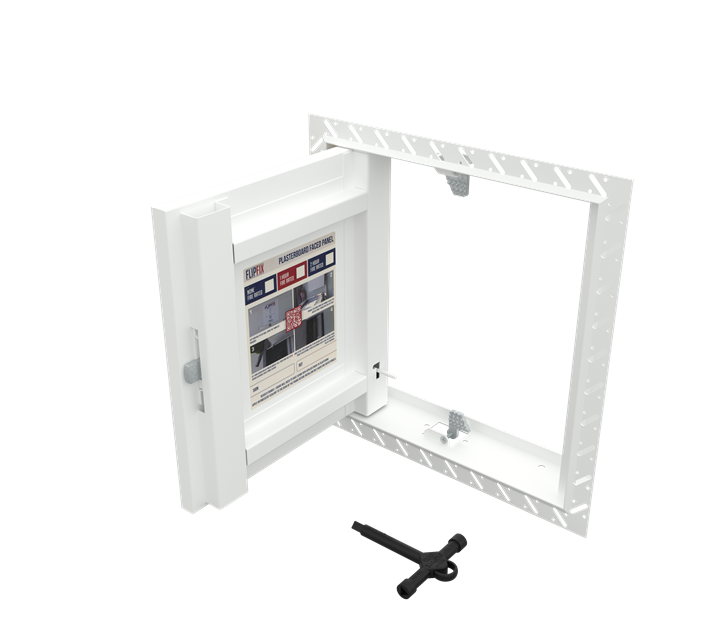

| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Panel Height - 50mm x Panel Width - 75mm |
| Composition / Manufacturing |
| Quality Category |
Mid Range |
| Product Design Category |
Standard Product |
| Ironmongery Details |
Standard budget lock manufactured from Bright zinc plated mild steel,Fast Fit Spring Pin Pivot Hinge manufactured from electroplated steel,[Screw Pin Hinge, manufactured from Bright Zinc Plated (BZP) steel],[Steel FlipFix fixing device, manufactured from Hot Galvanised Dipped Forged Steel] |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
25mm |
| Frame Steel Thickness |
0.9mm |
| Door Steel Thickness |
0.9mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth |
60mm |
| Board Infill Type |
12.5mm Thick GTEC Universal Board |
| Door Insulation Type |
None |
| Seal Type |
None |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
