| Technical Data |
| Wall or Ceiling or Both (Dual) |
Ceiling |
| Fire Rating |
2 Hour Fire Rated |
| Fire Test Standard |
BS EN 1364-2: 2018 with additional guidance from BS EN 1634-1:2014 + A1:2018. |
| Fire Test Classification |
Integrity (E) |
| Fire Tested Side |
Ceiling application Face (Room Side / opening down towards the fire risk side) |
| Fire Tested Size H x W mm |
650x900mm |
| Assessed Maximum Panel Sizes |
No increase permitted |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. |
300x450mm up to 650x900mm |
| Smoke Tested |
No Rating |
| Airtightness Tested |
No Rating |
| Acoustic Tested |
No Rating |
| Calculated U Value (Not Tested) Part L Compliant |
This Product has a calculated U Value of 0.35 W/m2K |

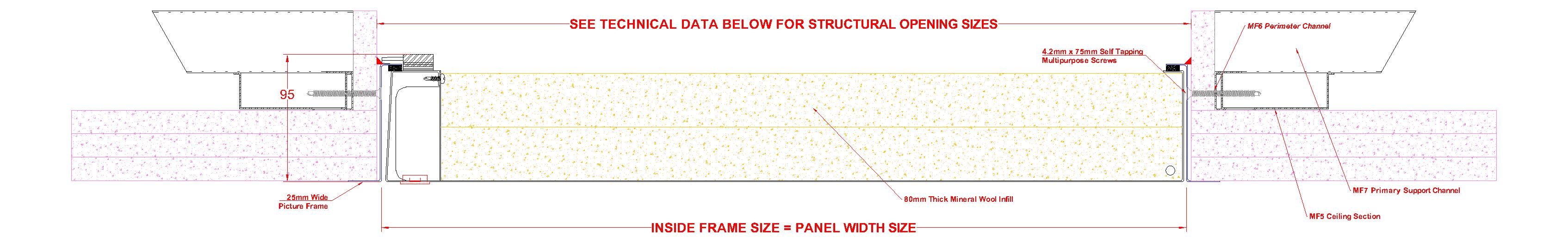

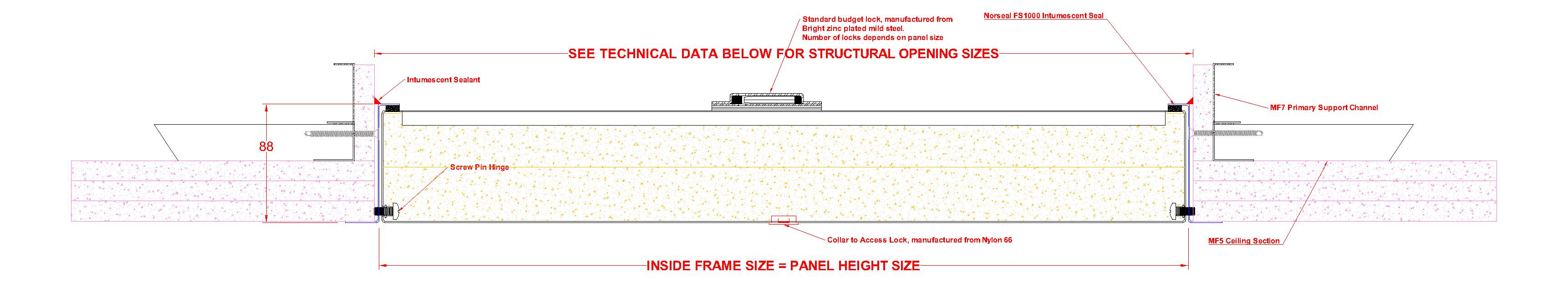

| Structural Opening Size |
Panel Height Size + 7mm x Panel Width Size + 7mm |
| Panel Size Formula H x Wmm |
Inside Frame Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Panel Height - 20mm x Panel Width - 105mm |
| Composition / Manufacturing |
| Quality Category |
Mid Range |
| Product Design Category |
Standard Product |
| Ironmongery Details |
Standard budget lock manufactured from Bright zinc plated mild steel,[Screw Pin Hinge, manufactured from Bright Zinc Plated (BZP) steel] |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
25mm |
| Frame Steel Thickness |
0.9mm |
| Door Steel Thickness |
0.9mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth |
88mm |
| Board Infill Type |
None |
| Door Insulation Type |
2no layers of 40mm Thick Rockwool RW3 |
| Seal Type |
Norseal FS1000 Self Adhesive Intumescent Foam Tape ,Sealed to All Door Closing Edges |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
