| Technical Data |
| Wall or Ceiling or Both (Dual) |
Dual |
| Fire Rating |
1 Hour Fire Rated |
| Fire Test Standard |
BS EN 1364-2: 2018,BS EN 1634-1: 2014+A1:2018 |
| Fire Test Classification |
Integrity (E) |
| Fire Tested Side |
Wall application Face (Room Side / opening towards the fire risk side) ,Ceiling application Face (Room Side / opening down towards the fire risk side) |
| Fire Tested Size H x W mm |
600x600mm |
| Assessed Maximum Panel Sizes |
No increase permitted |
| Smoke Tested |
No Rating |
| Airtightness Tested |
No Rating |
| Acoustic Tested |
No Rating |
| Important Safety Notice |
FlipFix access panels are for inspection purposes only. They should not be climbed through & used to support body weight. |

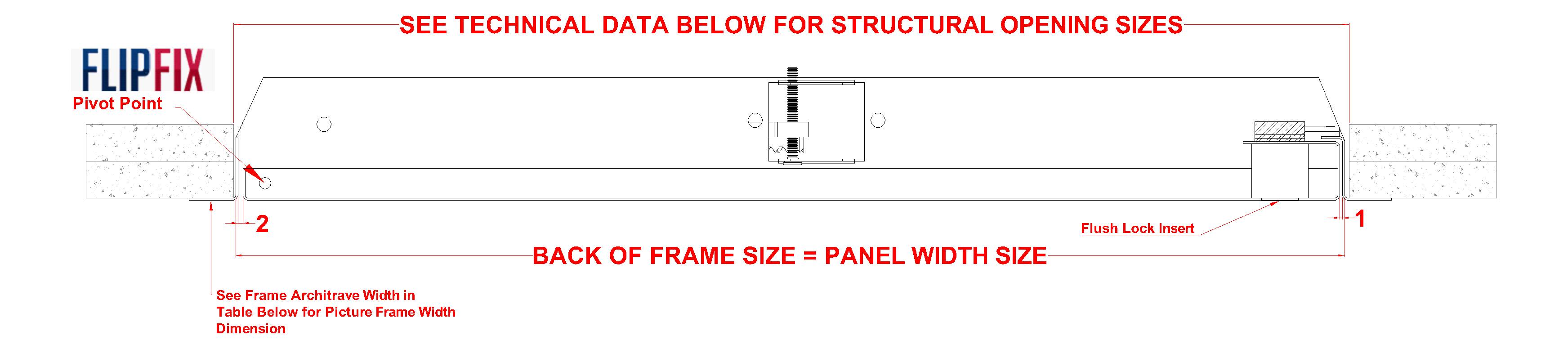

| Structural Opening Size |
Panel Height Size + 5mm x Panel Width Size + 5mm |
| Panel Size Formula H x Wmm |
Overall Back of Frame Size |

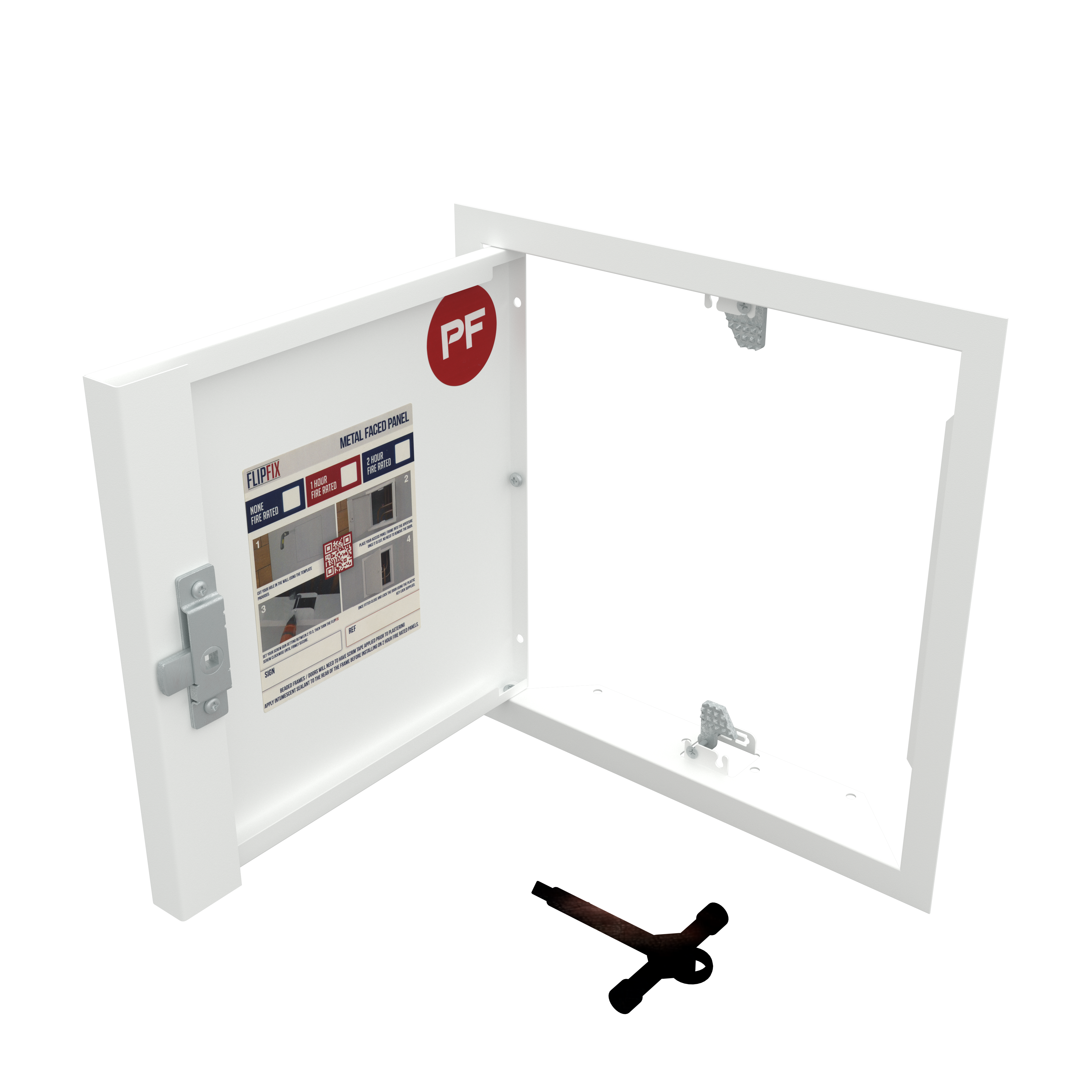

| Clear opening size through the installed panel with the door leaf open at 90 degrees |
Panel Height - 30mm x Panel Width - 50mm |
| Composition / Manufacturing |
| Quality Category |
Mid Range |
| Product Design Category |
Standard Product |
| Ironmongery Details |
[Steel FlipFix Flush Lock, Bright zinc plated Mild Steel with Plastic Fire Retardant Insert],Standard budget lock manufactured from Bright zinc plated mild steel,[Screw Pin Hinge, manufactured from Bright Zinc Plated (BZP) steel],[Steel FlipFix fixing device, manufactured from Hot Galvanised Dipped Forged Steel] |
| Lock Security Level |
Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) |
20mm (Stock Sizes) 25mm (Bespoke) |
| Frame Steel Thickness |
0.9mm |
| Door Steel Thickness |
0.9mm |
| Door & Frame Material Grade |
Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |

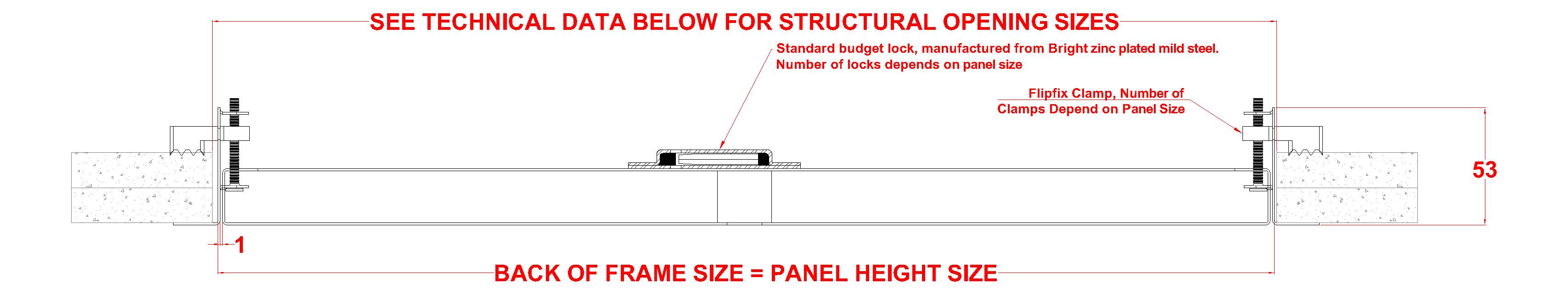

| Frame Depth |
53mm |
| Board Infill Type |
None |
| Door Insulation Type |
None |
| Seal Type |
None |
| Paint Type |
Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
