| General | |
|---|---|

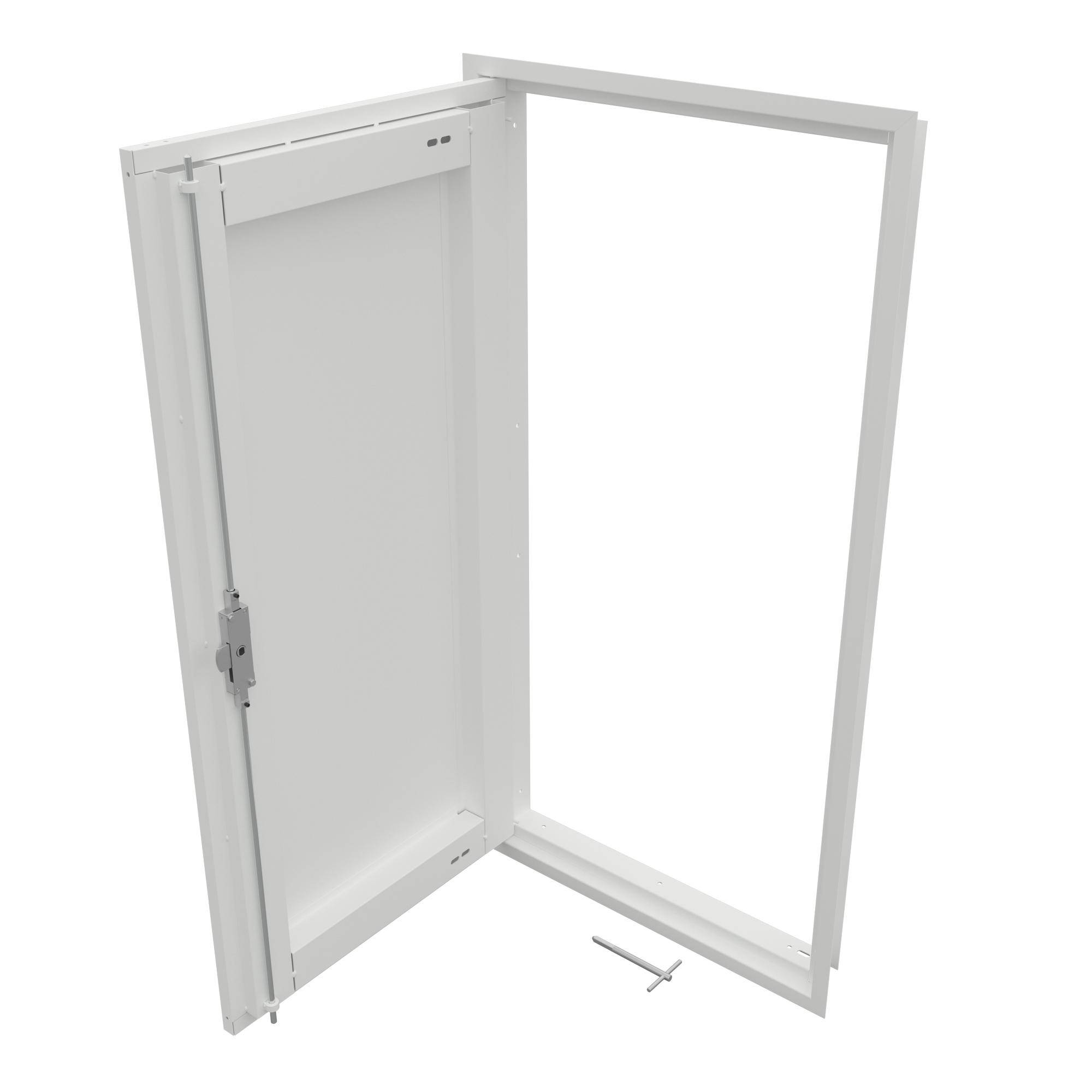

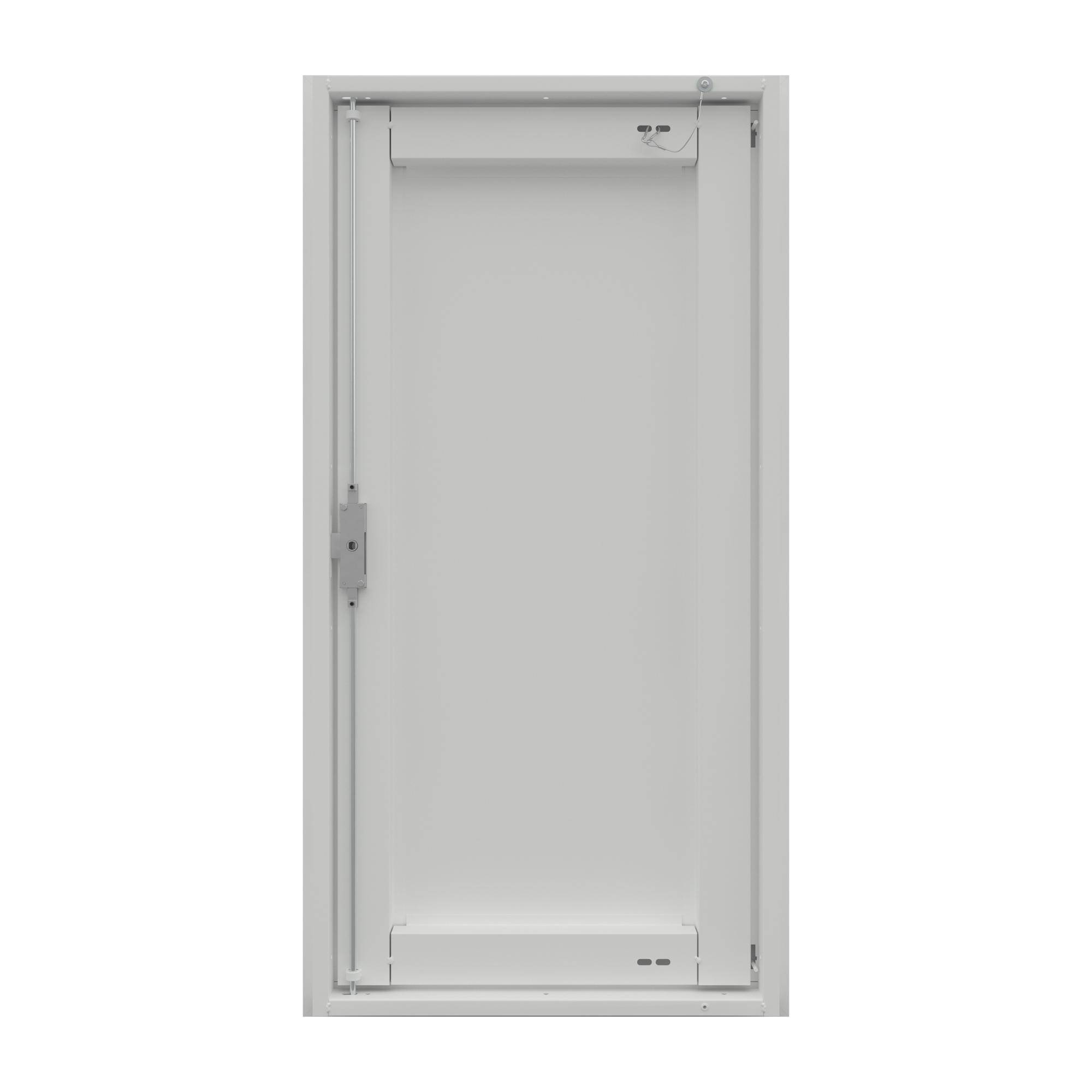

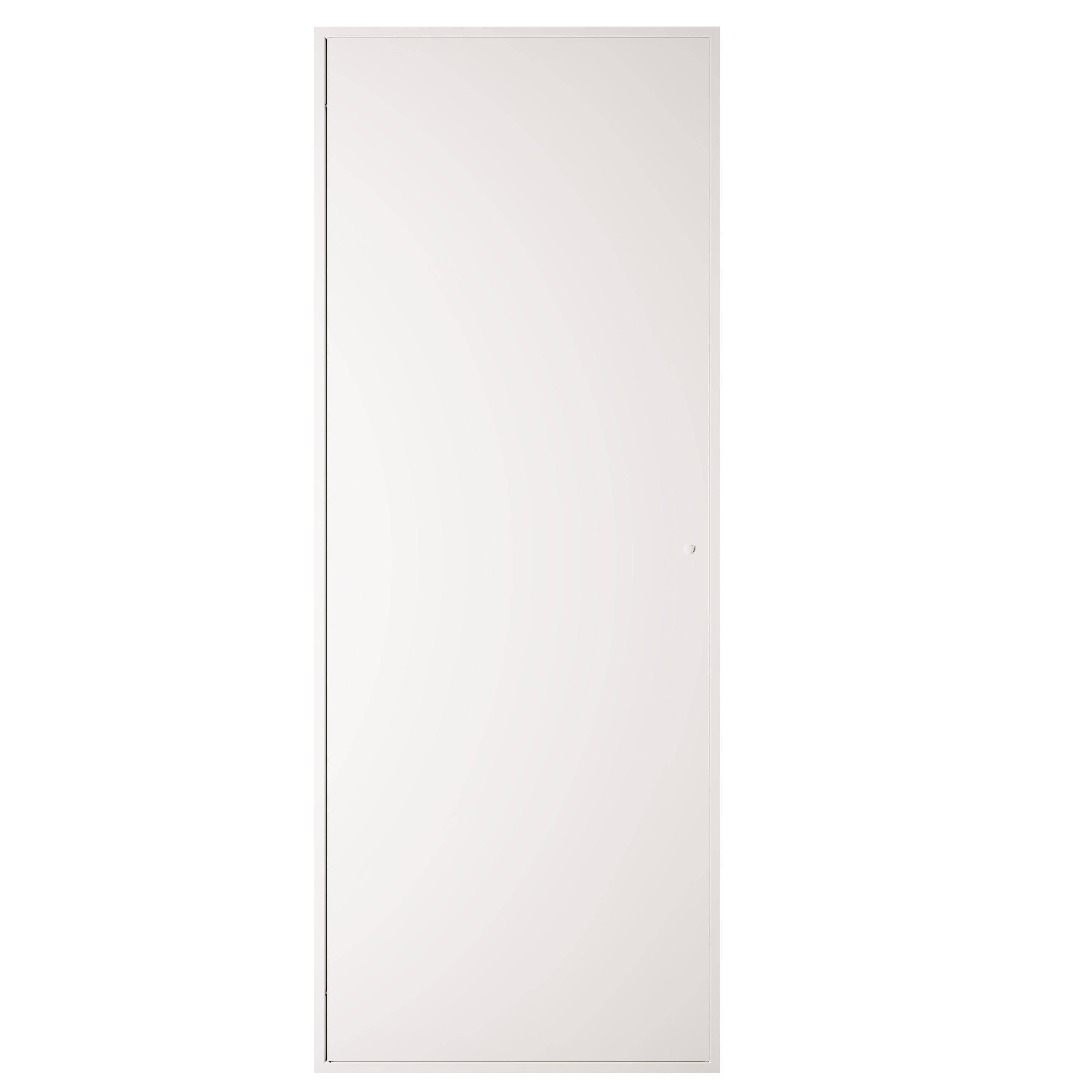

| Long Description | Premium Riser Door, Supplied with a Spring Pin Hinge System, 1.2mm Thick Door Leaf, 1.5mm Thick Frame, Non fire rated, Metal Door, 25mm wide Picture Frame, 3 Point Locking System, Single Door Unit, Powder Coated RAL 9010 30% Gloss. |
| Dimensions | |
|---|---|
| Height Range | 300 - 2,400 mm |
| Width Range | 300 - 900 mm |
| Technical Data | |
|---|---|
| Wall or Ceiling or Both (Dual) | Wall |
| Fire Rating | No Rating |
| Size range: Minimum to maximum (H × W mm). Fire Rated Panels: See assessed maximum panel sizes for allowable increases. | 300x300mm up to 2400x1000mm |
| Smoke Tested | No Rating |
| Airtightness Tested | No Rating |
| Acoustic Tested | No Rating |
| Corrosion class C1, C2, C3, C4 | C1 - Very Low: Exterior: Not suitable for outdoor use. Interior: Heated buildings with clean atmospheres, e.g. offices, shops, schools, hotels. |
| Wall Types | Most wall types as long as there are sufficiently robust locations to fix the frame to take the weight of the Door & Frame |

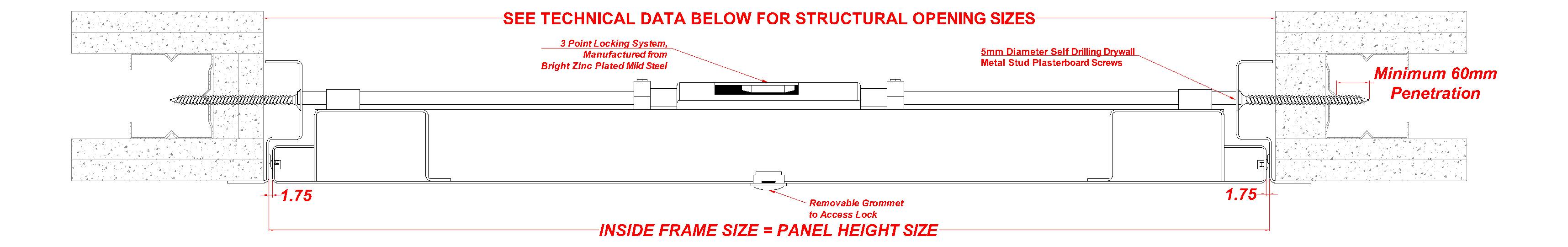

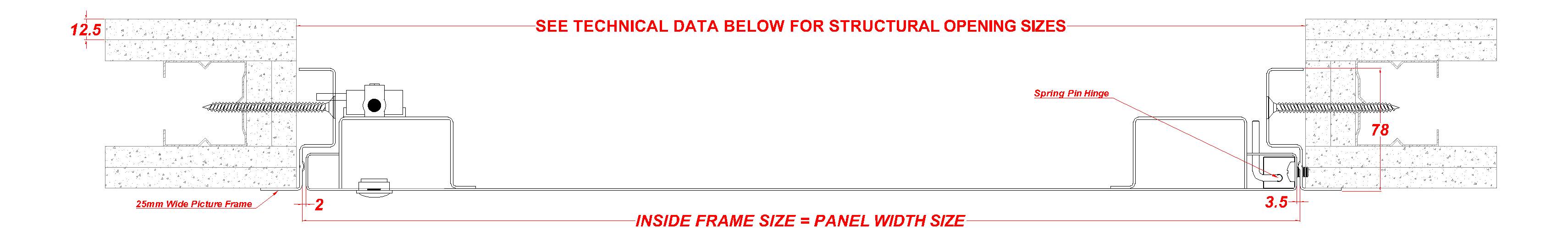

| Structural Opening Size | Panel Height Size + 7mm x Panel Width Size + 7mm |
| Panel Size Formula H x Wmm | Inside Frame Size |
| Clear opening size through the installed panel with the door leaf open at 90 degrees | Panel Height - 50mm x Panel Width - 100mm |
| Composition / Manufacturing | |
|---|---|
| Quality Category | Premium Range |
| Product Design Category | Standard Product |
| Ironmongery Details | 3 Point Locking System. Bright Zinc Plated Mild Steel,Fast Fit Spring Pin Pivot Hinge manufactured from electroplated steel |
| Lock Security Level | Grade 1 – Low Security |
| Frame Architrave Width (e.g. Picture / Beaded Frame) | 25mm |
| Frame Steel Thickness | 1.5mm |
| Door Steel Thickness | 1.2mm |
| Door & Frame Material Grade | Frame: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25,Door Leaf: Zintec Steel to BS EN 10152 : 2017 DC01 + ZE 25/25 |
| Frame Depth | 78mm |
| Paint Type | Polyester Powder Coated,RAL 9010 30% Gloss Pure white |
